CBFI Pure Ice Block Machine for Ice Sculpture

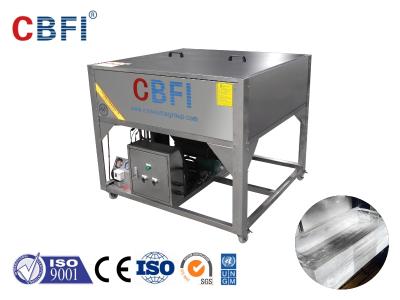

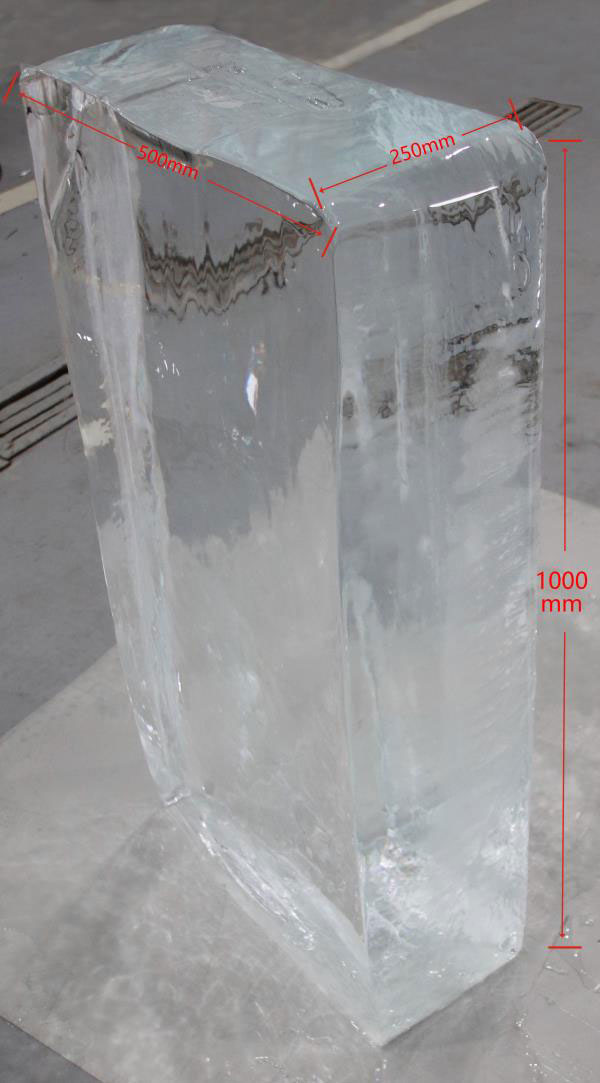

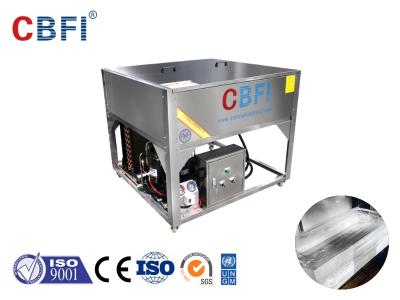

CBFI Pure Ice Block Machine for Luxury Ice Pure Ice machine uses the direct refrigeration evaporator made of  the aluminum alloy with highly efficient food grade. The machine storage the water on the direct refrigeration evaporator by mould.Different from the traditional brine system five sides freezing method, direct refrigeration Pure ice machine is only one side frozen at the bottom, so the ice forming speed is slow.However, the block ice  have high transparency, no bubbles, high hardness, regular  and no blank grooves in the middle, and It can be processed into ball ice, large cube ice(used for whisky), luxury ices,premium ices etc. Pure Ice Machine Main Feature 1、Leading transparent ice ice forming technology, easy to operate and durable. 2、Fully transparent ice, with no hollow groove, 100% ice utilization rate. 3、On the premise of water sanitation, transparent ice can reach food standard. 4、Compact equipment is easy to transport, move, install on site. 5、It is widely used and is suitable for many places. Pure Ice Machine Application Celebration party, company sentiment, ceremony, ice sculpture,  nightclub and etc. Product Parameter PIM-02 Power Supply 220V/50HZ/1P     Refrigerant R507 Evaporating Temperature ℃ -23 Condensing Temprature ℃ 40 Ambient Temperature ℃ 32 Water Supply Temperature ℃ 20 Ice Thickness mm 250 Ice Size mm 1000*500*250 Single Ice Block Kg 112.5 Capacity per time Kg 225 Quantity of ice per time piece 2 Ice Making Time h 70 Equipment Size (L*W*H) mm 1300*1225*973 Power kW 0.66 ♦Compressor Brand: Copeland; Refrigerant: R507; Cooling Method: Air cooling; ♦ Power Supply:  220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature. ♦ Remark: Design and specifications subject to change without notice.

CBFI TV20 2 ton per 24h tube ice machine   Features of CBFI Tube Ice Machine 1. 3D design, convenient for container transportation, simple installation and maintenance. 2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance. 3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation. 4. PLC intelligent control system, fully automated production, without manual operation. 5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low. 6. The whole machine has passed CE certification, which has high security. 7. The special water system design ensures better ice quality, uniform thickness, transparency and purity. 8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer. 9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.     Parameters TV20 Tube Ice Machine Parameters Name Unit Parameter Tube Diameter mm Φ22 Φ28 Φ35 Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 29.3 Power（kW） 10 Condenser Heat Exchange（kW） 53 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 25 Water Temperature Degree Celsius（℃） 21 Refrigerant   R507 Voltage V/P/HZ 380/3/50 Motor Power Ice Cutting Motor（kW） 0.75 Recircling Pump（kW） 0.75 Cooling Tower Power(kW) 0.25 Cooling Pump Power 1.1 Water Cooling Machine Dimension L*W*H(mm) 1500*1350*2077   Success Stories: CBFI Tube Ice Machines in Indonesia Successful Installation of CBFI 50+10 Ton Tube Ice Machine in Pemalang, Indonesia This case study explores the successful deployment of a CBFI 50+10 ton tube ice machine in Pemalang, Indonesia, showcasing its efficiency, energy savings, and seamless integration. Learn More > CBFI 30+15 Ton Tube Ice Machine Installation and Application in Indonesia CBFI successfully installed and commissioned a 30+15 ton tube ice machine in Indonesia, meeting the growing local demand for high-quality ice. Learn More >

CBFI 5 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 5 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF100 10 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4GE-23 Cooling Capacity（kW） 46.7 Power（kW） 16.52 Condenser Model WN-20 Heat Exchange（kW） 74.2 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 1.1 Cooling Tower Model LX-30 Power(kW) 0.75 Cooling Pump Model GD65-19 Power 2.2 Cooling Fan Power（kw） 0.75 Dimension L*W*H(mm) 2500*1700*2100 Weight kg 1500

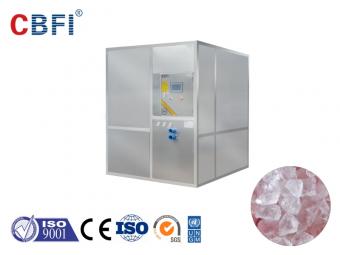

CBFI CV2000 2 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV2000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity（kW） 11.7 Power（kW） 4.34 Condenser Model WN-5 Heat Exchange（kW） 19.4 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Circulating Pump Power（kW） 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice  Successful Cube Ice Machine Projects 10 Tons Per Day Cube Ice Machine Project CBFI delivered a complete 10-ton daily cube ice machine solution, featuring high efficiency, stable operation, and excellent ice quality. The system has been running reliably, helping the client meet growing market demand for edible cube ice. View Project Details → 6 Sets of 10-Ton Cube Ice Machines – Energy Saving Solution We successfully supplied and commissioned six 10-ton cube ice machines for a large-scale project, delivering outstanding energy efficiency and reliable performance. This solution significantly reduced operating costs while ensuring continuous high-quality ice production. View Project Details →

The shape of the tunnel quick freezer is a rectangular tunnel. The conveyor belt can be divided into two types: plate belt type and mesh belt type. Cold air circulates in the tunnel, and food is quickly frozen when passing through the tunnel. The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C. Incoming temperature/outgoing temperature: +15°C/-18°C.

30 ton tube ice machine is very welcomed product in the TV series. Many large ice plants choose it because of the high cost performance. It is the largest freon refrigeration system tube ice machine you can find in the world. And larger capacity with ammonia refrigerant is also provided, contact us for more details.

The shape of the tunnel quick freezer is a rectangular tunnel. The conveyor belt can be divided into two types: plate belt type and mesh belt type. Cold air circulates in the tunnel, and food is quickly frozen when passing through the tunnel. The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C. Incoming temperature/outgoing temperature: +15°C/-18°C.
