CBFI 15 ton per 24h Automatic Block Ice Machine

ABI150 direct cooling block ice machine is a device for producing large ice cubes. It uses a highly efficient thermally conductive aluminum alloy material for heat exchange with the refrigerant.

  • Brand:

    CBFI
  • Item NO.:

    ABI150
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

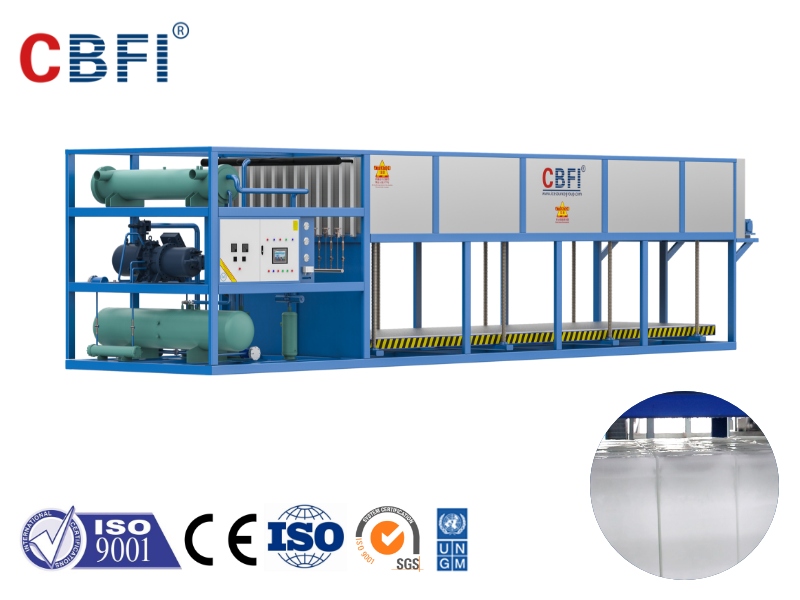

CBFI ABI150 15 ton per 24h block ice machine

CBFI ABI150 15 ton per 24h block ice machine


CBFI Automatic Block Ice Machine Advantages


ABI150 direct cooling block ice machine is a device for producing large ice cubes. It uses a highly efficient thermally conductive aluminum alloy material for heat exchange with the refrigerant. It has a lower freezing temperature to make ice formation faster and makes the ice cubes take more time to melt.
Daily Capacity: 15 ton 24 hrs
1. Efficient heat exchange, environmental protection and safety

2. Automatic water replenishment, automatic deicing

3. The ice blocks are clean and hygienic, up to edible standards


Machine Detail


CBFI ABI150 15 ton block ice machine condenser tube
CBFI ABI150 15 ton block ice machine refrigerant tank
CBFI ABI150 15 ton block ice machine bottom view


Parameters


ABI50 Automatic Block Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 6HE-28
Cooling Capacity(kW) 48.2
Power(kW) 18.9
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -15
Ambient Temperature Degree Celsius(℃) 28
Water Temperature Degree Celsius(℃) 16
Refrigerant R507
Voltage V/P/HZ 380/3/50
Lifting Motor Power(kW) 1.5
Cooling Tower Power(kW) 0.55
Cooling Pump Power(kW) 1.5
10kg Block Ice Dimension L*W*H(mm) 225*90*550
25kg Block Ice Dimension L*W*H(mm) 315*120*760
Machine Dimension(Water Cooling) L*W*H(mm) 4800*1860*1900

Block Ice Making


CBFI ABI150 15 ton block ice machine right view
CBFI ABI150 15 ton block ice machine front view
CBFI ABI150 15 ton block ice machine block ice



CBFI ABI150 15 ton block ice machine top view
CBFI ABI150 15 ton block ice machine block ice
CBFI ABI150 15 ton block ice machine block ice


Quality Control



CBFI ABI150 15 ton block ice machine control panel
CBFI ABI150 15 ton block ice machine condenser tube welding
CBFI ABI150 15 ton block ice machine welding



CBFI ABI150 15 ton block ice machine air tightness test
CBFI ABI150 15 ton block ice machine electrical box installation
CBFI ABI150 15 ton block ice machine ice mold welding
