CBFI Pure Ice Block Machine for Luxury Ice

  • Item NO.:

    PIM0206
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

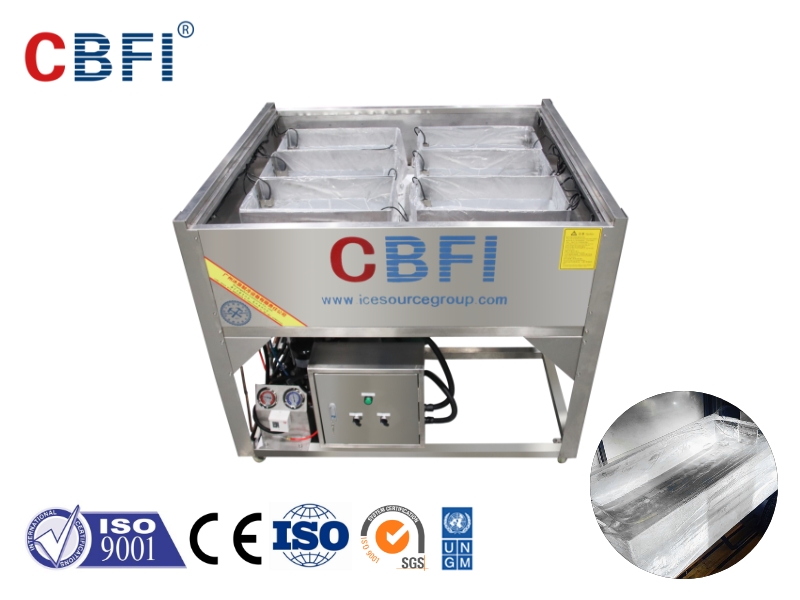

CBFI Pure Ice Block Machine for Luxury Ice

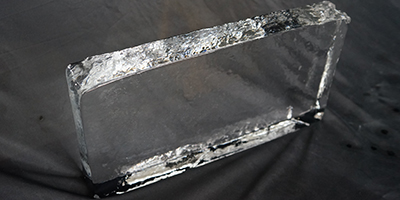

Pure Ice machine uses the direct refrigeration evaporator made of  the aluminum alloy with highly efficient food grade. The machine storage the water on the direct refrigeration evaporator by mould.Different from the traditional brine system five sides freezing method, direct refrigeration Pure ice machine is only one side frozen at the bottom, so the ice forming speed is slow.However, the block ice  have high transparency, no bubbles, high hardness, regular  and no blank grooves in the middle, and It can be processed into ball ice, large cube ice(used for whisky), luxury ices,premium ices etc.


Pure Ice Machine Main Feature


1、Leading transparent ice ice forming technology, easy to operate and durable.

2、Fully transparent ice, with no hollow groove, 100% ice utilization rate.

3、On the premise of water sanitation, transparent ice can reach food standard.

4、Compact equipment is easy to transport, move, install on site.

5、It is widely used and is suitable for many places.


Pure Ice Machine Application




Celebration party, company sentiment, ceremony, ice sculpture,  nightclub and etc.




Product Parameter


PIM-02
Power Supply 220V/50HZ/1P
Refrigerant R507
Evaporating Temperature -23
Condensing Temprature 40
Ambient Temperature 32
Water Supply Temperature 20
Ice Thickness mm 250
Ice Size mm 1000*500*250
Single Ice Block Kg 112.5
Capacity per time Kg 225
Quantity of ice per time piece 2
Ice Making Time h 70
Equipment Size (L*W*H) mm 1300*1225*973
Power kW 0.66

♦Compressor Brand: Copeland; Refrigerant: R507; Cooling Method: Air cooling;

♦ Power Supply:  220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately).

♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature.

♦ Remark: Design and specifications subject to change without notice.
