Plate Ice Machine

/CBFI 5 Tons Per 24h Plate Ice Machine

CBFI 5 Tons Per 24h Plate Ice Machine

  • Brand:

    CBFI, OEM
  • Item NO.:

    HYF50
  • Product Origin:

    Guangzhou Port
  • Product Details
  • video

CBFI 5 Tons Per Day Ice Plate Making Machine


Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks.


Plate Ice Machine Features


During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.

●  Daily Production 5 ton

●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc.

●  3D designed to ensure the container transportation. Easy for installation & maintaining

●  PLC intelligent controlled, full automatic production, need no human operation.



Plate Ice Application






Drink Cooling

Food Processing

Fishery

Food Preservation

Supermarket






Products Parameter




HYF100 10 tons Plate Ice Machine Parameters
Name Unit Parameter



Bitzer Compressor Parameter

Model 4GE-23
Cooling Capacity(kW) 46.7
Power(kW) 16.52


Condenser

Model WN-20
Heat Exchange(kW) 74.2
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant
R507
Voltage V/P/HZ 380/3/50
Agitator Power(kW) 1.1


Cooling Tower

Model LX-30
Power(kW) 0.75


Cooling Pump

Model GD65-19
Power 2.2
Cooling Fan Power(kw) 0.75
Dimension L*W*H(mm) 2500*1700*2100
Weight kg 1500




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
plate ice machine
CBFI 20 Tons Per 24h Plate Ice Machine

CBFI 20 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 20 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF200 20 ton Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 6FE-50*2 Cooling Capacity(kW) 83.3*2 Power(kW) 29.2*2 Condenser Model WN-80-77 Heat Exchange(kW) 280.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power(kW) 2.2 Cooling Tower Model LX-100 Power(kW) 2.2 Cooling Pump Model GD100-19A Power 5.5 Cooling Fan Power(kw) 2.2 Dimension L*W*H(mm) 4100*2250*2250 Weight kg 4650

plate ice machine

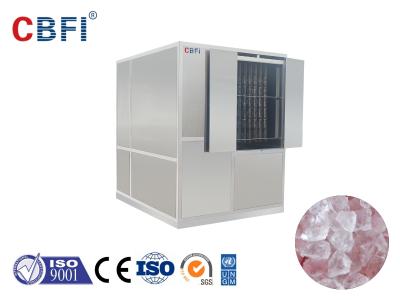

CBFI 10 Tons Per 24h Plate Ice Machine
