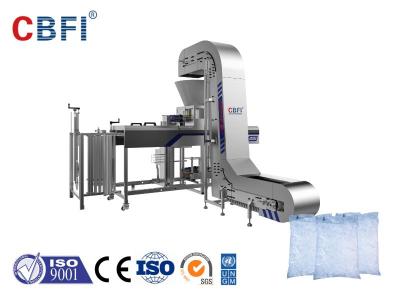

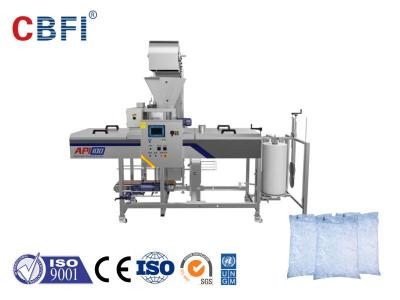

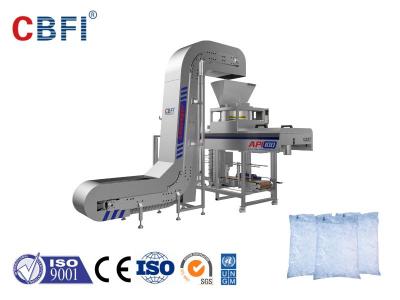

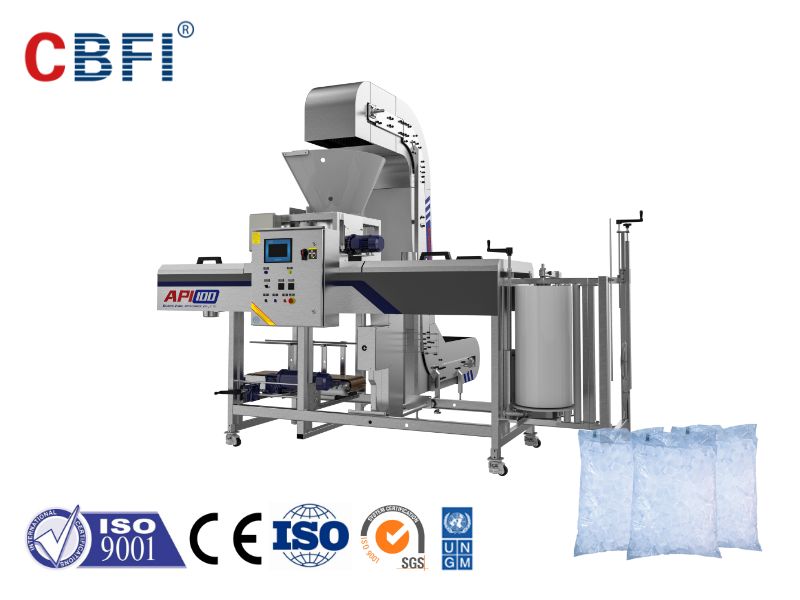

CBFI Automatic Ice Packing Machine

  • Item NO.:

    API Specs
  • Product Details
  • video

CBFI API Specs Automatic Ice Packing Machine

Automatic Ice Packing Machine


CBFI automatic ice packing machine is fast packing, saving time and manpower, mostly used in packing tube ice and cube ice. It is definitely the first choice for medium and large edible ice factory.

Connect full functions of delivery, weighing, filling, sealing, counting etc.


  • PE packaging - packaging machine using PE bag packaging, saving the cost of packaging bags, a roll of film can be made into 2000 bags
  • Packaging machine automatic bag making
  • High speed with stable sealing. It is up to 25bags/min
  • Stepless adjustment - the packaging speed is stepless adjustment, just adjust the cutting speed with the knob, the packaging speed will automatically change accordingly.
  • The replacement of the film is convenient - the packaging machine is convenient to replace the film, pull the film to the entrance of the film, press the button, the film is automatically installed.
  • Equipment investment cost can be recovered in less than on year
  • Packing process is sanitary to meet the food sanitation standard
  • Automatic edible ice plant to evaluate efficiency and sanitation.


Product Parameters



Automatic Packing Ice Machine MODEL API-100 Parameters
Capacity
10~25bags/min
Ice Weight 2~18kgs/bag
Film Material
LLDPE

Film Thickness

2~5kgs: 0.04mm minimum

5~15kgs: 0.06mm minimum

Bag sizes

Length: 400~800mm

Width: 300~380mm

Power Supply 380V-3P-50Hz, 4.37kW
Air Pressure ≥0.6MPa
Machine Weight 800kgs
Machine Size(L*W*H) 3350mm*1170mm*2250mm


Product Details

PLC Control

With system controller, the machine can be easily adjusted for different parameters as per requirement

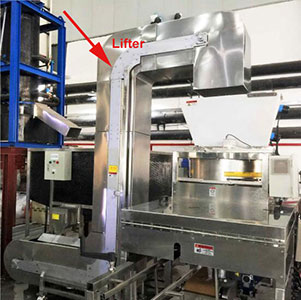

Lifter: Convey ice automatically

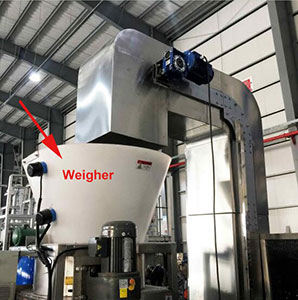

Weigher: Easily changeable of weight without using scale

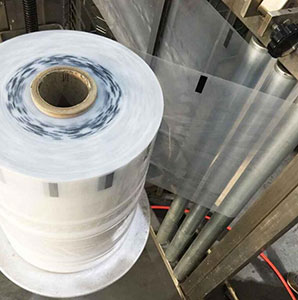

Plastice Films: Make bags automatically


FAQ

1、Q:How do I know whether I need an automatic packing ice machine?

      A:If you have the following requirements, then you need the AIP100.

         Better Packing Efficiency

         More Clean Ice

         Less Labor Cost


2、Can I use my unique bag design?

       Yes, you can provide the design to us to make unique films for you or customize your own film at your country with our certain specs.


3、Is the automatic packing ice system a single machine?

      No, it contains packing machine itself and lifting and conveying ancillaries.
