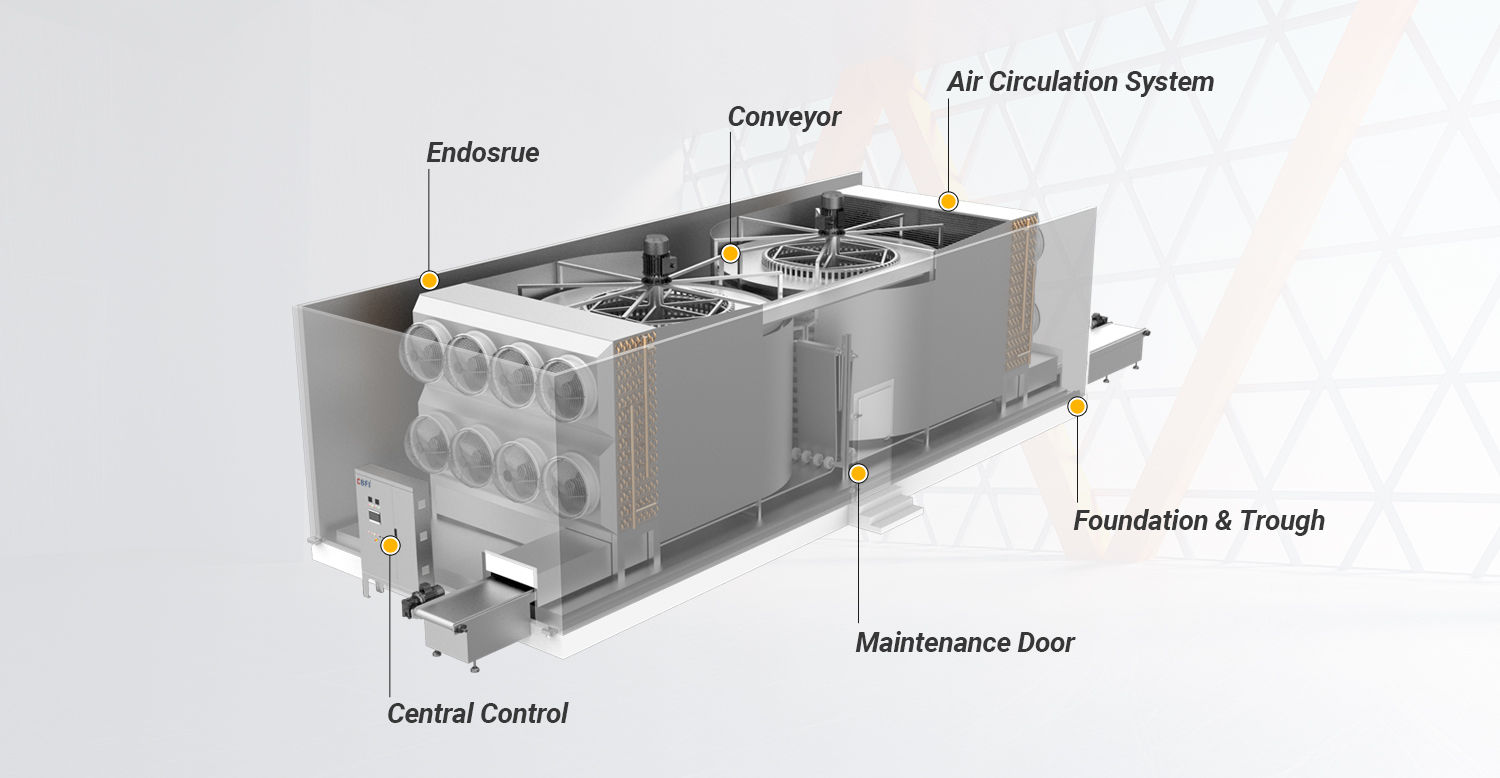

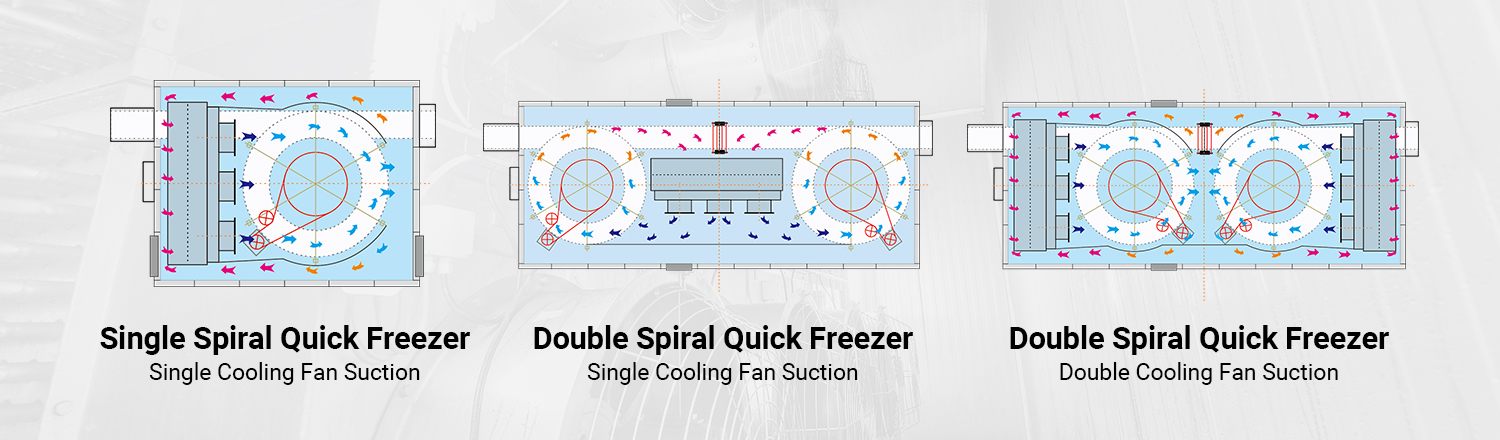

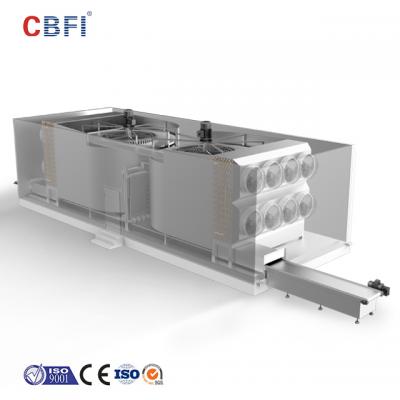

IQF Double Spiral Freezer Quick Freezing Machine

Spiral Quick Freezer is a freezing device with small area, energy saving, high efficiency and large capacity,Widely used in aquatic seafood, hot pot products, meat products, cakes, poultry, ice cream, bread dough fermentation, etc.

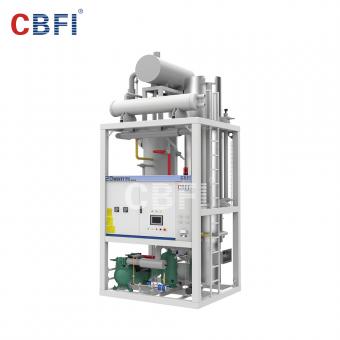

CBFI TV20 2 ton per 24h tube ice machine   Features of CBFI Tube Ice Machine 1. 3D design, convenient for container transportation, simple installation and maintenance. 2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance. 3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation. 4. PLC intelligent control system, fully automated production, without manual operation. 5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low. 6. The whole machine has passed CE certification, which has high security. 7. The special water system design ensures better ice quality, uniform thickness, transparency and purity. 8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer. 9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.     Machine Details         Parameters TV20 Tube Ice Machine Parameters Name Unit Parameter Tube Diameter mm Φ22 Φ28 Φ35 Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 29.3 Power（kW） 10 Condenser Heat Exchange（kW） 53 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 25 Water Temperature Degree Celsius（℃） 21 Refrigerant   R507 Voltage V/P/HZ 380/3/50 Motor Power Ice Cutting Motor（kW） 0.75 Recircling Pump（kW） 0.75 Cooling Tower Power(kW) 0.25 Cooling Pump Power 1.1 Water Cooling Machine Dimension L*W*H(mm) 1500*1350*2077   Quality Control

CBFI 10 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 10 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF100 10 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 6FE-50 Cooling Capacity（kW） 83.3 Power（kW） 29.2 Condenser Model WN-50-04 Heat Exchange（kW） 165.8 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 1.5 Cooling Tower Model LX-60 Power(kW) 1.5 Cooling Pump Model GD80-21 Power 4 Cooling Fan Power（kw） 1.5 Dimension L*W*H(mm) 2100*2100*2200 Weight kg 2500

Our advanced packaging solution offers a one-stop service integrating conveying, feeding, weighing, and sealing. With high automation and a user-friendly touch screen, it ensures efficient operation. The clean packaging process complies with food hygiene standards, guaranteeing safety and quality in every package.

CV20000 industrial cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.
