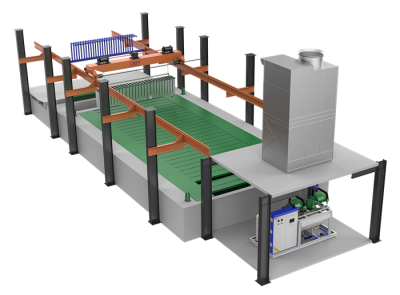

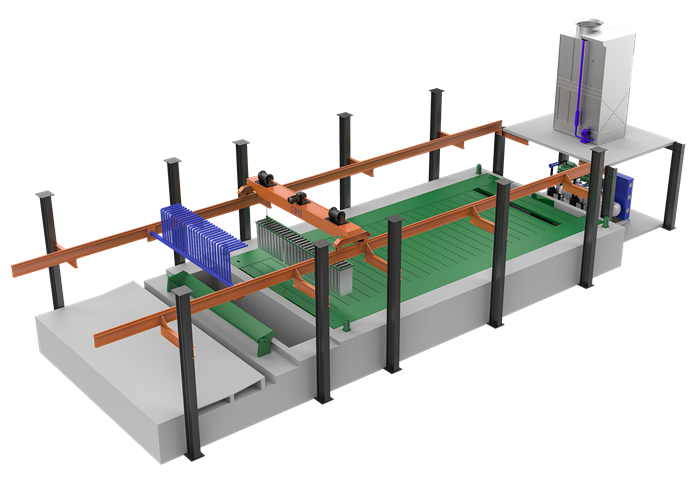

CBFI 50ton per 24h Block Ice MakingMachine

ABI150 direct cooling block ice machine is a device for producing large ice cubes. It uses a highly efficient thermally conductive aluminum alloy material for heat exchange with the refrigerant.

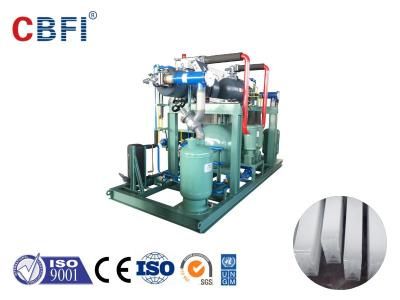

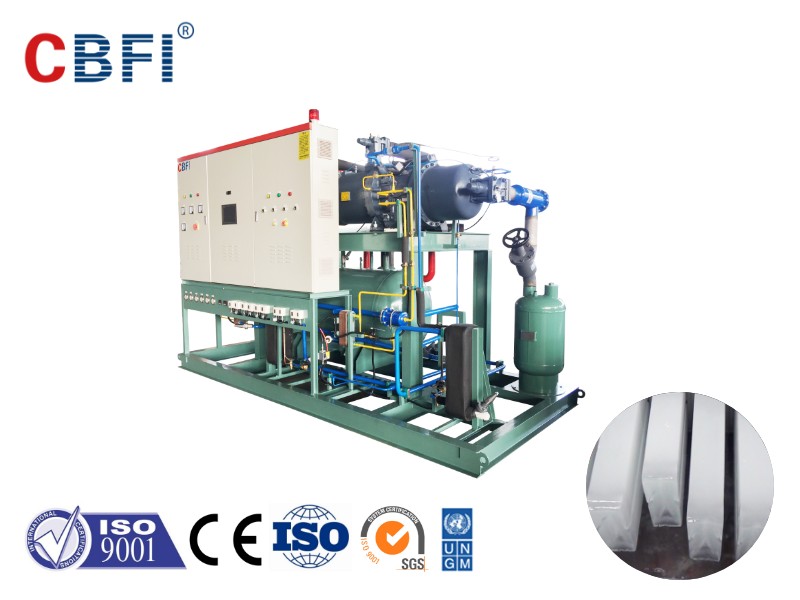

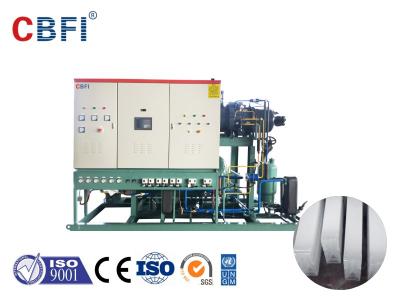

CBFI TV20 2 ton per 24h tube ice machine   Features of CBFI Tube Ice Machine 1. 3D design, convenient for container transportation, simple installation and maintenance. 2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance. 3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation. 4. PLC intelligent control system, fully automated production, without manual operation. 5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low. 6. The whole machine has passed CE certification, which has high security. 7. The special water system design ensures better ice quality, uniform thickness, transparency and purity. 8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer. 9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.     Parameters TV20 Tube Ice Machine Parameters Name Unit Parameter Tube Diameter mm Φ22 Φ28 Φ35 Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 29.3 Power（kW） 10 Condenser Heat Exchange（kW） 53 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 25 Water Temperature Degree Celsius（℃） 21 Refrigerant   R507 Voltage V/P/HZ 380/3/50 Motor Power Ice Cutting Motor（kW） 0.75 Recircling Pump（kW） 0.75 Cooling Tower Power(kW) 0.25 Cooling Pump Power 1.1 Water Cooling Machine Dimension L*W*H(mm) 1500*1350*2077

CBFI 5 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 5 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF100 10 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4GE-23 Cooling Capacity（kW） 46.7 Power（kW） 16.52 Condenser Model WN-20 Heat Exchange（kW） 74.2 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 1.1 Cooling Tower Model LX-30 Power(kW) 0.75 Cooling Pump Model GD65-19 Power 2.2 Cooling Fan Power（kw） 0.75 Dimension L*W*H(mm) 2500*1700*2100 Weight kg 1500

1. Advanced Water Treatment Workshop The quality of water determines the quality of edible ice. To ensure our ice is pure and slow-melting, CBFI provides an advanced water treatment system. Our water treatment workshop is equipped with RO water treatment systems and multiple filtration devices to meet the highest standards of edible ice. 2. Automated Ice Production Workshop Our cutting-edge ice-making system and automated production line cater to various types of edible ice, such as tube ice and cube ice. The produced ice is free from chemical additives, pure, and clear, with enhanced melt resistance and better taste. 3. Ice Cup Production Workshop Our production workshop maintains strict control over low-temperature environments to ensure product quality. Popular cup sizes include 240g per cup, with a daily output of up to 500,000 cups. Customization is welcome. Filling System Image Placeholder Dried ice cubes are transported via conveyor belts into ice hoppers. The intelligent multi-head weigher ensures precise measurement and packaging, with sensitive detection of ice cube entry to maintain consistency in output. Dispensing System The dispensing system synchronizes with the conveyor system, accurately dropping ice into cups. It ensures smooth ice flow without blockages and accommodates various ice specifications to meet diverse needs. The production line is highly integrated, with sanitary observation panels for hygiene reliability. Its modular design allows for easy daily cleaning, installation, and disassembly. Sealing System Our special heat-sealing technology ensures the cup mouth is tightly sealed, clean, and hygienic. A mechanical arm then places a direct-drinking cap, completing the ice cup production process. 4. Packaging Workshop Once the ice cups are made, they enter a highly automated packaging process, which includes automated boxing, sealing, metal detection, palletizing, and wrapping for storage. The entire operation is mechanized and intelligent. Automated Boxing, Sealing, and Metal Detection. Automated Palletizing, Pallet Distribution, Wrapping, and Storage 5. Storage Cold Room After packaging, the ice cups are transported by forklifts to the cold storage for preservation or distributed via cold chain logistics to supermarkets, convenience stores, and other locations in need of ice cups. The modular design of the cup ice production line ensures high integration and easy maintenance, whether it's cleaning, assembly, or disassembly. Product Excellence Adhering to standardized production principles, we continuously lead innovation in the edible ice industry, setting new benchmarks and heights in industry standards!
