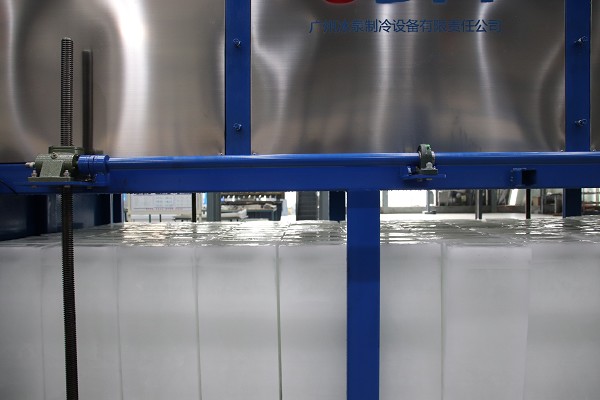

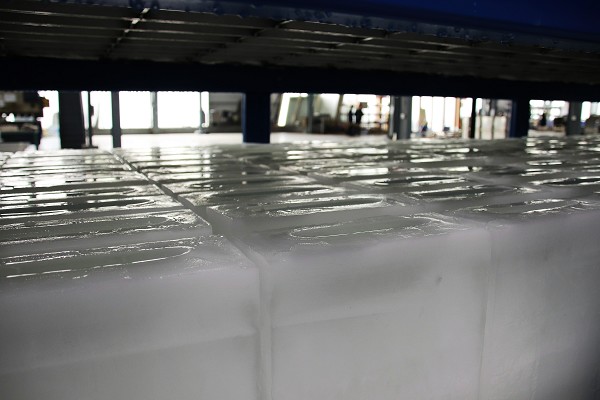

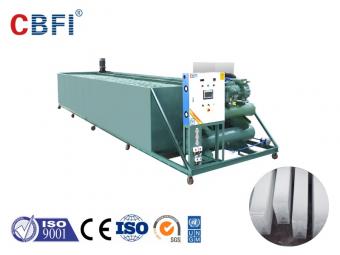

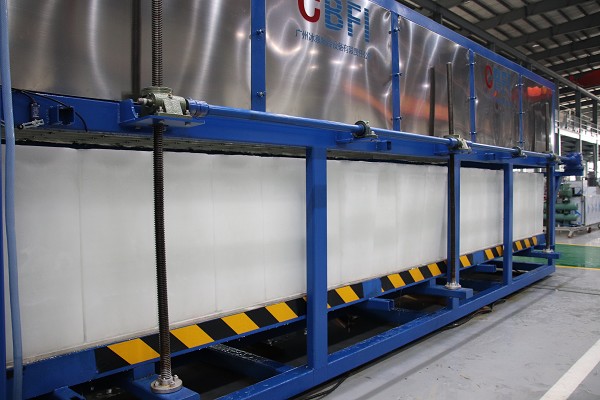

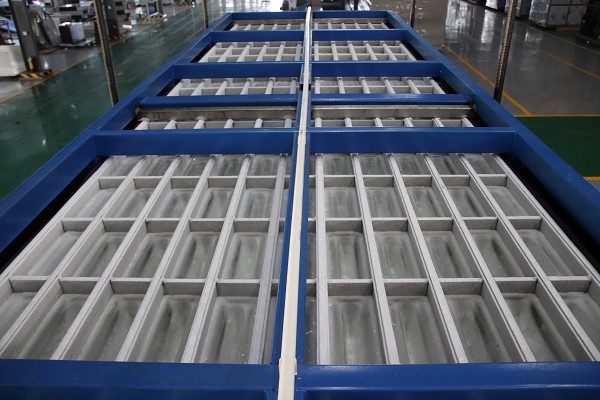

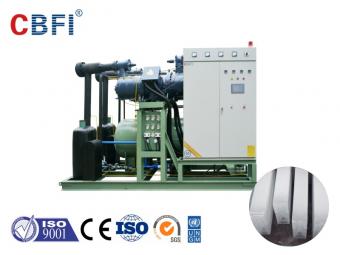

CBFI 100ton per 24h Block Ice Making Machine

CBFI 5 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 5 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF100 10 tons Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4GE-23 Cooling Capacity（kW） 46.7 Power（kW） 16.52 Condenser Model WN-20 Heat Exchange（kW） 74.2 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 32 Water Temperature Degree Celsius（℃） 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power（kW） 1.1 Cooling Tower Model LX-30 Power(kW) 0.75 Cooling Pump Model GD65-19 Power 2.2 Cooling Fan Power（kw） 0.75 Dimension L*W*H(mm) 2500*1700*2100 Weight kg 1500

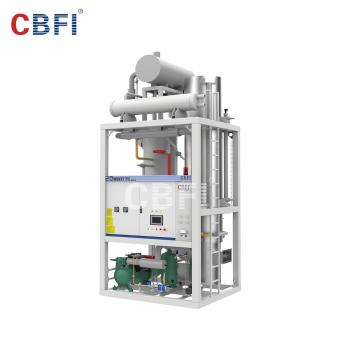

CBFI TV20 2 ton per 24h tube ice machine   Features of CBFI Tube Ice Machine 1. 3D design, convenient for container transportation, simple installation and maintenance. 2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance. 3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation. 4. PLC intelligent control system, fully automated production, without manual operation. 5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low. 6. The whole machine has passed CE certification, which has high security. 7. The special water system design ensures better ice quality, uniform thickness, transparency and purity. 8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer. 9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.     Parameters TV20 Tube Ice Machine Parameters Name Unit Parameter Tube Diameter mm Φ22 Φ28 Φ35 Bitzer Compressor Parameter Model 4NES-14 Cooling Capacity（kW） 29.3 Power（kW） 10 Condenser Heat Exchange（kW） 53 Condensing Temperature Degree Celsius（℃） 40 Evaporating Temperature Degree Celsius（℃） -10 Ambient Temperature Degree Celsius（℃） 25 Water Temperature Degree Celsius（℃） 21 Refrigerant   R507 Voltage V/P/HZ 380/3/50 Motor Power Ice Cutting Motor（kW） 0.75 Recircling Pump（kW） 0.75 Cooling Tower Power(kW) 0.25 Cooling Pump Power 1.1 Water Cooling Machine Dimension L*W*H(mm) 1500*1350*2077   Success Stories: CBFI Tube Ice Machines in Indonesia Successful Installation of CBFI 50+10 Ton Tube Ice Machine in Pemalang, Indonesia This case study explores the successful deployment of a CBFI 50+10 ton tube ice machine in Pemalang, Indonesia, showcasing its efficiency, energy savings, and seamless integration. Learn More > CBFI 30+15 Ton Tube Ice Machine Installation and Application in Indonesia CBFI successfully installed and commissioned a 30+15 ton tube ice machine in Indonesia, meeting the growing local demand for high-quality ice. Learn More >

CBFI Pure Ice Block Machine for Luxury Ice Pure Ice machine uses the direct refrigeration evaporator made of  the aluminum alloy with highly efficient food grade. The machine storage the water on the direct refrigeration evaporator by mould.Different from the traditional brine system five sides freezing method, direct refrigeration Pure ice machine is only one side frozen at the bottom, so the ice forming speed is slow.However, the block ice  have high transparency, no bubbles, high hardness, regular  and no blank grooves in the middle, and It can be processed into ball ice, large cube ice(used for whisky), luxury ices,premium ices etc. Pure Ice Machine Main Feature 1、Leading transparent ice ice forming technology, easy to operate and durable. 2、Fully transparent ice, with no hollow groove, 100% ice utilization rate. 3、On the premise of water sanitation, transparent ice can reach food standard. 4、Compact equipment is easy to transport, move, install on site. 5、It is widely used and is suitable for many places. Pure Ice Machine Application Celebration party, company sentiment, ceremony, ice sculpture,  nightclub and etc. Product Parameter PIM-02 Power Supply 220V/50HZ/1P     Refrigerant R507 Evaporating Temperature ℃ -23 Condensing Temprature ℃ 40 Ambient Temperature ℃ 32 Water Supply Temperature ℃ 20 Ice Thickness mm 250 Ice Size mm 1000*500*250 Single Ice Block Kg 112.5 Capacity per time Kg 225 Quantity of ice per time piece 2 Ice Making Time h 70 Equipment Size (L*W*H) mm 1300*1225*973 Power kW 0.66 ♦Compressor Brand: Copeland; Refrigerant: R507; Cooling Method: Air cooling; ♦ Power Supply:  220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature. ♦ Remark: Design and specifications subject to change without notice.

Hot Sale Economic Solid Tube Ice Machine (with flat cut ends) Full cylinder ice  10-30tons Freon/Ammonia System   Market introduction Recent years, there has been a trend in the European and American edible ice market. The ice must be exquisite in appearance and strong in melting resistance. Then, solid tube with saw-cut was born. The ice has no holes in the middle, and the melting time is much longer than that of ordinary ice tubes. , The finished alcoholic drinks have a good taste, consumers can taste the original taste of alcoholic drinks, and the ice tube have a high ornamental value. In the next few years, solid tube with saw-cut will gradually be sought after by people all over the world.   CBFI(Guangzhou Icesource) is the only manufacturer of Solid Tube Ice(with flat cut ends) Machine in China. And the price has an absolute advantage than other manufacturer in Europe. CBFI saw cut(Solid No Hole)Tube ice machines are the the most recently developed model for high requirement ice user. Our special technology allows a solid frozen tube ice with a saw cutting design to produce clear and delicate clear ice cylinders with flat cut ends.     Features of Solid Tube Ice Machine   1.Hard, Clear solid tube ice with no hole   2.Cartridge’ saw cutting mechanism-Special designed by CBFI The exclusive design of solid tube ice with saw cut a. Patented saw cut technology, ensure the cutting is flat, saw cut rate is above 95%  b. Rust-resistant, Corrosion-resistant and Durable cutting blade, used SUS440C (Scalpel grade material)  c. Patented refrigeration technology, prevents all the problem might brought by the  change of load, ensure the stable running of the whole refrigeration system.  d. Exclusive ice making water control system, ensure solid ice rate is above 98%       3.Both ammonia and Freon system are applicable. Capacity range from 10 to 30 tons.   4.Tube-ice 22mm, 28mm, 35mm,41mm Diameter available, other sizes can also be customized according to customer requirement.        Benefit    1.Make higher quality ice to be more competitive in the market,cater for higher quality demand. 2.Higher quality ice for more profit 3.Effective and mass production of quality ice, no molds. 4.Factory tested to assure proper operation and reduce installation time.    China's first 30 ton ammonia machine case in Europe The customer is one of the largest fully automatic ice factories in Europe. In order to meet the ice demand of the market, the customer choose to cooperate with CBFI, so why CBFI? 1.Because CBFI can provide equipment that meets European CE import and installation standards, it is also the only manufacturer in China that can produce such equipment. 2.Compared with machines of the same quality in Europe, the price has an absolute advantage, reducing customer costs, allowing customers to recover costs in the shortest time and obtain profits. With the assistance of CBFI professional engineers, the machine was successfully installed and the ice tube have been sold to the European market.   The parameters of the ice machine
