Large Cube Ice Machine

/CBFI 1 ton per 24h Cube Ice Machine

CBFI 1 ton per 24h Cube Ice Machine

  • Brand:

    CBFI
  • Item NO.:

    CV1000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

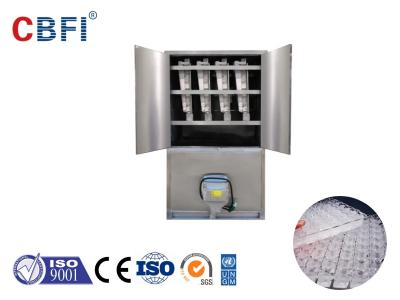

CBFI CV1000 1 ton per 24h Cube Ice Machine

Small Cube Ice Machine



Features of CBFI Edible Cube Ice Machine:


1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.

2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.

3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.

4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.

5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.

6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.


Machine Details















Parameters


CV1000 Cube Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4EES-4
Cooling Capacity(kW) 11.7
Power(kW) 4.34
Condenser Model WN-5
Heat Exchange(kW) 19.4
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R507
Voltage V/P/HZ 380/3/50
Circulating Pump Power(kW) 0.37
Cooling Tower Model LX-8
Power(kW) 0.18
Cooling Pump Model GD40-15
Power 1.1
Cooling Fan Power(kW) 0.37
Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700
Weight kg 800



Cube Ice



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
automatic cube ice making machine
CBFI 10 ton per 24h cube Ice Machine

CV10000 high speed edible cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers, supply special size ince machines made as per request.

automatic cube ice machine
CBFI 3 ton per 24h cube Ice Machine

CV3000 low power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.

automatic cube ice machine
CBFI 5 ton per 24h cube Ice Machine

CV5000 high power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.

 cube ice machine

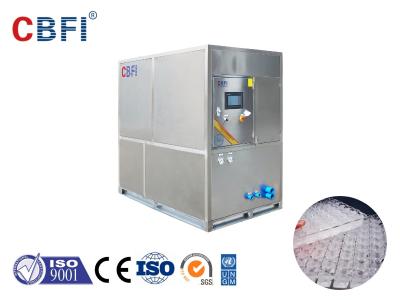

CBFI 2 ton per 24h Cube Ice Machine

CBFI CV2000 2 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV2000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity(kW) 11.7 Power(kW) 4.34 Condenser Model WN-5 Heat Exchange(kW) 19.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Circulating Pump Power(kW) 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice

CBFI high efficiency and energy saving brine freezer
CBFI Brine Freezer

Introducing the CBFI® Brine Freezer, a revolutionary solution in brine rapid freezing technology. Designed for maximum efficiency and precision, this freezer uses an advanced rapid brine circulation system to quickly freeze a wide variety of products while preserving their quality and texture. Whether you're freezing fruits, vegetables, seafood, or baked goods, the CBFI® Brine  Freezer delivers exceptional performance, ensuring your products stay fresh longer and maintain their peak quality. Enhance your freezing process with the CBFI® Brine Freezer.

large automatic ice block machine
CBFI 30 ton per 24h Automatic Block Ice Machine

ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker. CBFI can provide 1-30 tons automatic block ice maker.

Ice Plate Machine
CBFI 40 tons per 24h Plate Ice Machine

CBFI 40 Tons Per Day Ice Plate Making Machine  Plate ice machine is suitable for automatic ice production line. CBFI plate ice machine conducted technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. Through PLC concentrated control, we can easily operate. Multiple individual ice forming and harvesting shortened the ice making period. The machine is sustainable and can endure vibration and shocks. Plate Ice Machine Features During the ice cycle of fresh ice in the slab ice mechanism, the refrigerant vaporizes and absorbs heat after the expansion valve. Since the refrigerant flows through the honeycomb-shaped pipeline in the middle of the ice making plate, it can absorb the heat of the fresh water sprinkled on the ice making plate, so that the fresh water slowly freezes on the icing plate, and the principle of freezing at 0 ° C of the water is used. Because ice is a single ore, it cannot coexist with it. Water automatically removes impurities during the crystallization process. At this time, only fresh water freezes, impurities, air, etc. flow out with water, so the ice on the ice plate is clean and transparent. . The water is continuously sprinkled by the water pipe, and the ice is continuously thickened to a certain extent (can be freely set) and then automatically de-ice. De-icing is the use of warm water heated by the residual heat of the compressor on the inside of the icing plate to transfer the temperature to the ice on the surface of the icing plate. The ice melts and forms an isolation from the icing plate, and cannot be attached to the icing plate to achieve automatic de-icing.  ●  Daily Production 40 ton ●  Invention patent owned, the product conducts technologies such as flat film heat exchange, double surface ice forming, S type refrigerant flow tunnels, recycle heat gas ice harvesting and etc. ●  3D designed to ensure the container transportation. Easy for installation & maintaining ●  PLC intelligent controlled, full automatic production, need no human operation. Plate Ice Application Drink Cooling Food Processing Fishery Food Preservation Supermarket        Products Parameter HYF400 40 ton Plate Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 6FE-50*2 Cooling Capacity(kW) 83.3*2 Power(kW) 29.2*2 Condenser Model WN-80-77 Heat Exchange(kW) 280.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Agitator Power(kW) 2.2 Cooling Tower Model LX-100 Power(kW) 2.2 Cooling Pump Model GD100-19A Power 5.5 Cooling Fan Power(kw) 2.2 Dimension L*W*H(mm) 4100*2250*2250 Weight kg 4650

2 tons tube ice machine

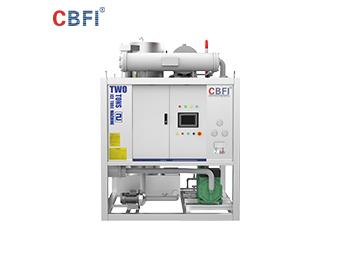

CBFI TV20 2 ton per 24h Tube Ice Machine
