CBFI 2 ton per 24h Cube Ice Machine

  • Item NO.:

    CV2000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

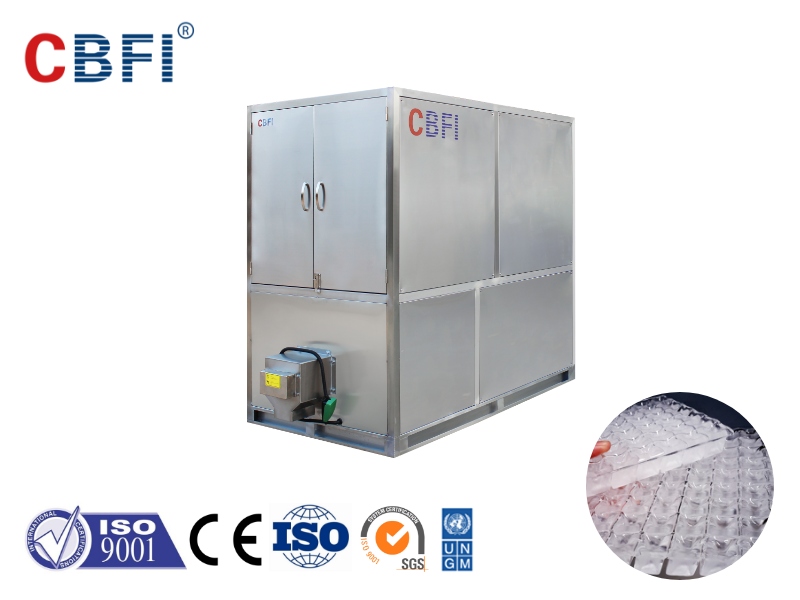

CBFI CV2000 2 ton per 24h Cube Ice Machine



Features of CBFI Edible Cube Ice Machine:


1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.

2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.

3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.

4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.

5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.

6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.


Machine Details















Parameters


CV2000 Cube Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4EES-4
Cooling Capacity(kW) 11.7
Power(kW) 4.34
Condenser Model WN-5
Heat Exchange(kW) 19.4
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R22
Voltage V/P/HZ 380/3/50
Circulating Pump Power(kW) 0.37
Cooling Tower Model LX-8
Power(kW) 0.18
Cooling Pump Model GD40-15
Power 1.1
Cooling Fan Power(kW) 0.37
Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700
Weight kg 800



Cube Ice
