CBFI 5 ton per 24h cube Ice Machine

CV5000 high power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.

We have experienced team of R & D engineers,supply special size ince machines made as per request.


  • Item NO.:

    CV5000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

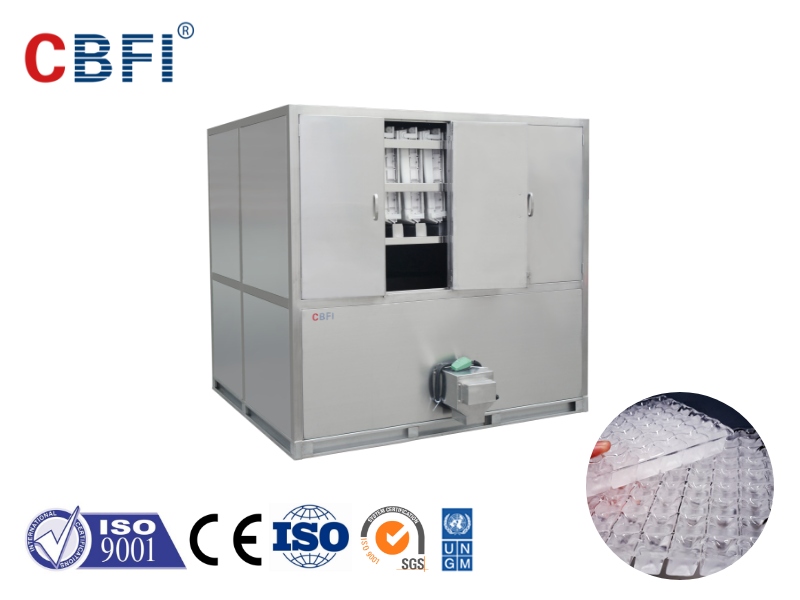

CBFI CV5000 5 ton per 24h cube Ice Machine

5 ton cube ice machine


Features of CBFI Edible Cube Ice Machine:


1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.

2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.

3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.

4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.

5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.

6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.


Machine Details















Parameters


CV5000 Cube Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 6HE-28
Cooling Capacity(kW) 60.2
Power(kW) 21
Condenser Model WN-25
Heat Exchange(kW) 95.2
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R507
Voltage V/P/HZ 380/3/50
Circulating Pump Power(kW) 0.55
Cooling Tower Model LX-30
Power(kW) 0.75
Cooling Pump Model GD65-19
Power 2.2
Cooling Fan Power(kW) 1.5
Machine Dimension(Water Cooling) L*W*H(mm) 2890*1780*1860
Weight kg 1600


Cube Ice




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
small cube ice machine
CBFI 1 ton per 24h Cube Ice Machine

CBFI CV1000 1 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV1000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity(kW) 11.7 Power(kW) 4.34 Condenser Model WN-5 Heat Exchange(kW) 19.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Circulating Pump Power(kW) 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice

automatic cube ice making machine

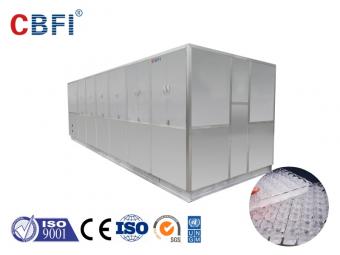

CBFI 10 ton per 24h cube Ice Machine
