CBFI 5 ton per 24h Flake Ice Machine

BF5000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.

We have experienced team of R & D engineers, supply special size ince machines made as per request.

  • Item NO.:

    BF5000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

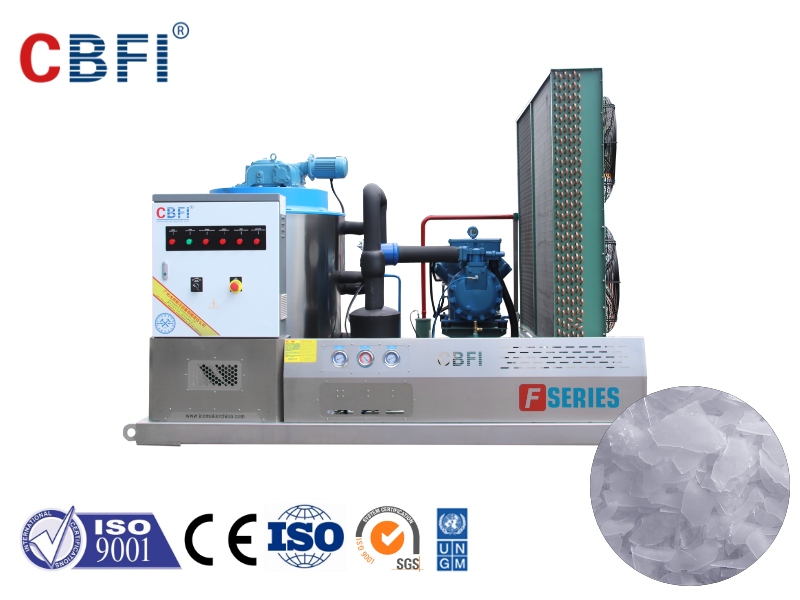

CBFI BF5000 5 ton per 24h flake ice machine

5 ton flake ice making machine


Features of CBFI Flake Ice Machine


1. International brand compressors. Original authentic, refurbished machines and counterfeit machines are rejected. The compressor has high working efficiency and is durable and not easily damaged.
2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.


Machine Details









Parameters


BF5000 Flake Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4GE-23
Cooling Capacity(kW) 31.6
Power(kW) 13.49
Condenser Model WN-25
Heat Exchange(kW) 95.2
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -20
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R22
Voltage V/P/HZ 380/3/50
Evaporator Reducer Power(kw) 0.37
Circulating Pump Power(kw) 0.12
Brine Pump Power(kw) 9
Cooling Tower Model LX-25
Power(kW) 0.75
Cooling Pump Model GD65-19
Power 2.2
Machine Dimension(Water Cooling) L*W*H(mm) 1900*1500*1470


Quality Control
