CBFI 3 ton per 24h cube Ice Machine

CV3000 low power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.

We have experienced team of R & D engineers,supply special size ince machines made as per request.

  • Item NO.:

    CV3000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

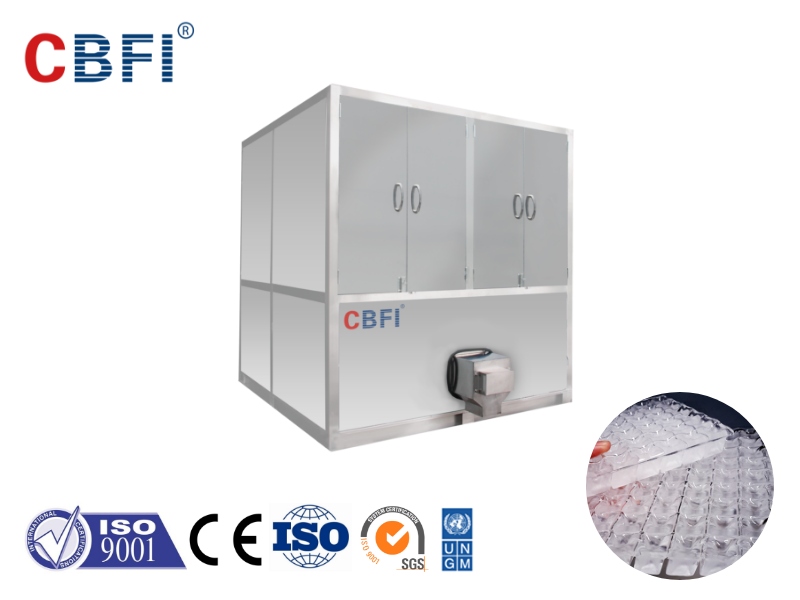

CBFI CV3000 3 ton per 24h cube Ice Machine

3 ton cube ice machine


Features of CBFI Edible Cube Ice Machine:

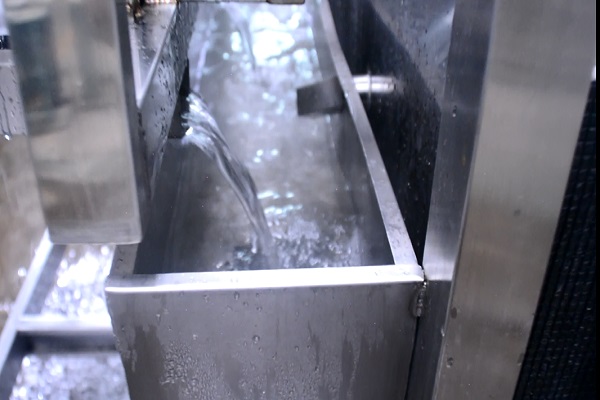

1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.

2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.

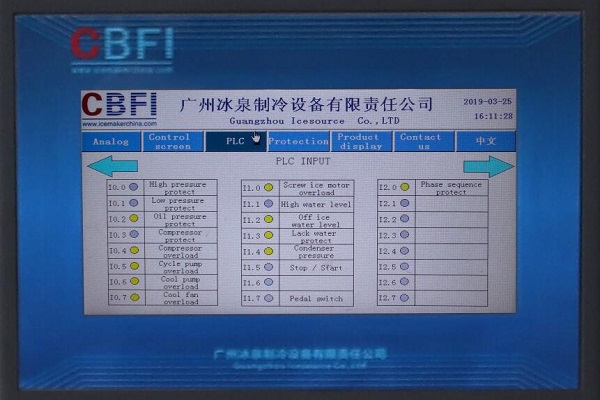

3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.

4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.

5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.

6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.

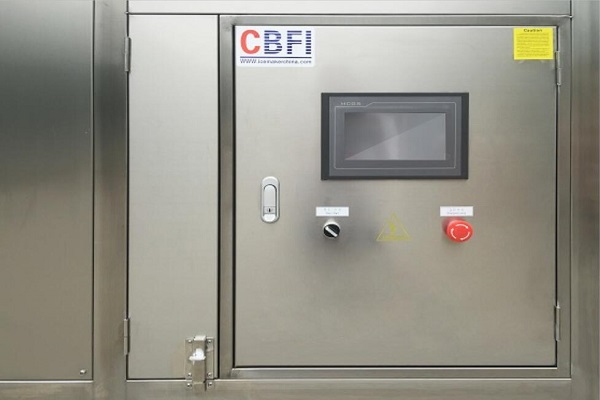

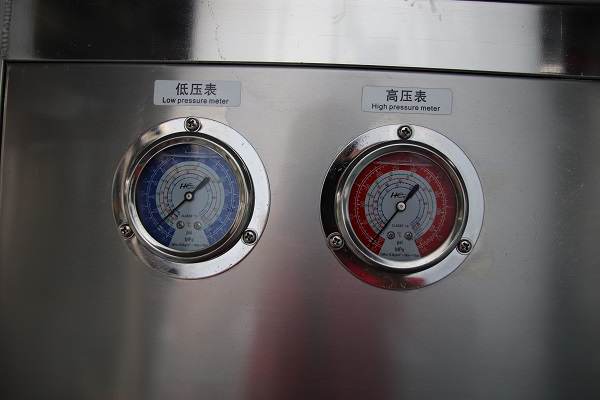

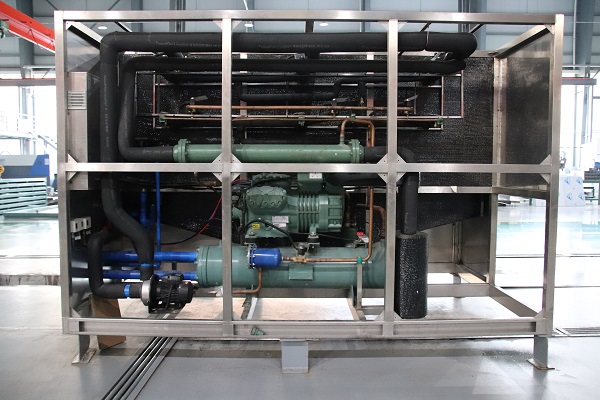

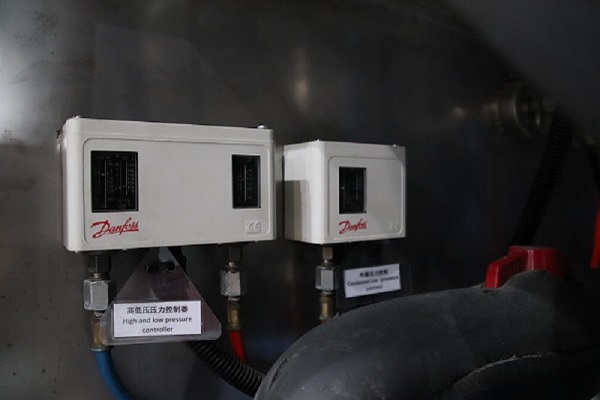

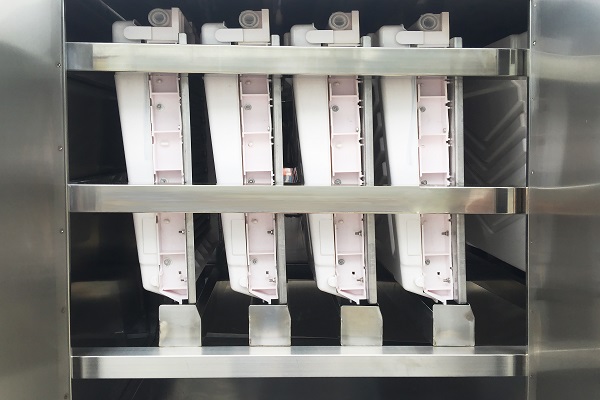

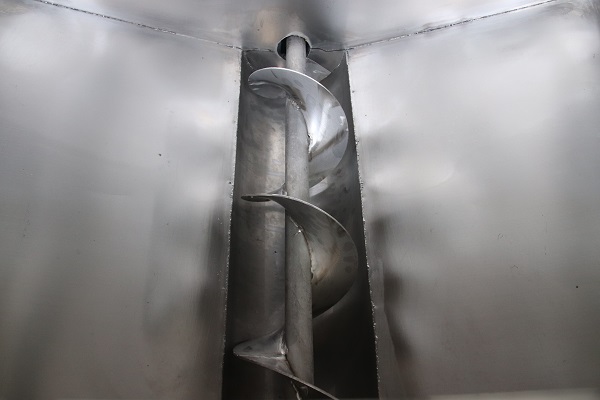

Machine Details















Parameters


CV3000 Cube Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4NES-14
Cooling Capacity(kW) 30.1
Power(kW) 10.58
Condenser Model WN-15
Heat Exchange(kW) 49.2
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R22
Voltage V/P/HZ 380/3/50
Circulating Pump Power(kW) 0.37
Cooling Tower Model LX-20
Power(kW) 0.56
Cooling Pump Model GD50-17
Power 1.5
Cooling Fan Power(kW) 0.75
Machine Dimension(Water Cooling) L*W*H(mm) 1980*1630*1860
Weight kg 1200


Cube Ice




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
small cube ice machine
CBFI 1 ton per 24h Cube Ice Machine

CBFI CV1000 1 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV1000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity(kW) 11.7 Power(kW) 4.34 Condenser Model WN-5 Heat Exchange(kW) 19.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R22 Voltage V/P/HZ 380/3/50 Circulating Pump Power(kW) 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice

automatic cube ice making machine
CBFI 10 ton per 24h cube Ice Machine

CV10000 high speed edible cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers, supply special size ince machines made as per request.

automatic cube ice machine
CBFI 5 ton per 24h cube Ice Machine

CV5000 high power cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place. We have experienced team of R & D engineers,supply special size ince machines made as per request.

 cube ice machine
CBFI 2 ton per 24h Cube Ice Machine

CBFI CV2000 2 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV2000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity(kW) 11.7 Power(kW) 4.34 Condenser Model WN-5 Heat Exchange(kW) 19.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R22 Voltage V/P/HZ 380/3/50 Circulating Pump Power(kW) 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice

Ball Ice Machine
CBFI Ball Ice Machine

CBFI CBM Series Ball Ice Machine Ball ice maker, Ice ball carving machine, and ice sphere machine are the different name for the same machine. It is the new product provided by CBFI. This machine is able to carve pure ice block into ice balls. The ice ball is crystal clear and clean, which promotes luxury of whiskey or spirit. 1. Ice ball machine was Independent rearch and development by CBFI, which is exclusive in China. 2. High efficiency to make ice balls, up to 200 unites per hour.  3. Ice ball is perfect with 100% clear and roundess.  4. Ice ball size can be customize. Daily Production Daily production quantity of our ice ball machine could be 312 units, 624 units, 936 units, 1248 units, 2880 units Production Process  1.Pure Ice Making :Using CBFI Pure Ice Machine to make crystal clear pure ice. 2. Flatten Pure Ice: Carefully flattening the pure ice.  3. Ice Ball Carving: Carving the pure ice by using CBFI Ice Ball Carving Machine.       4.Packing Ice Ball: PET box packing.   5.Luxury Finish Packing: Luxury box finish packing. Production Detail Product Parameter Application area  Since the crystal ice sphere is high quality luxury ice type, we suggest use it with whiskey, brandy, cocktail, party, cold drinks etc high-end wine. Or use as hospitality promotion application, such as in ice bar, ice sculpture etc.

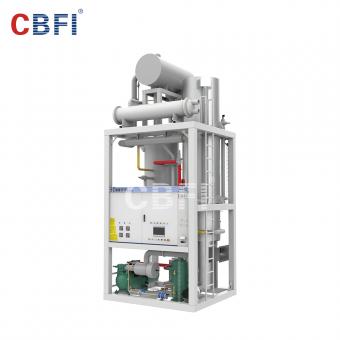

automatic tube ice machine
