CBFI 15 ton per 24h Flake Ice Machine

15 tons 24 hrs flake ice machine BF15000 is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish.

We have experienced team of R & D engineers, supply special size ince machines made as per request.

  • Brand:

    CBFI
  • Item NO.:

    BF15000
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

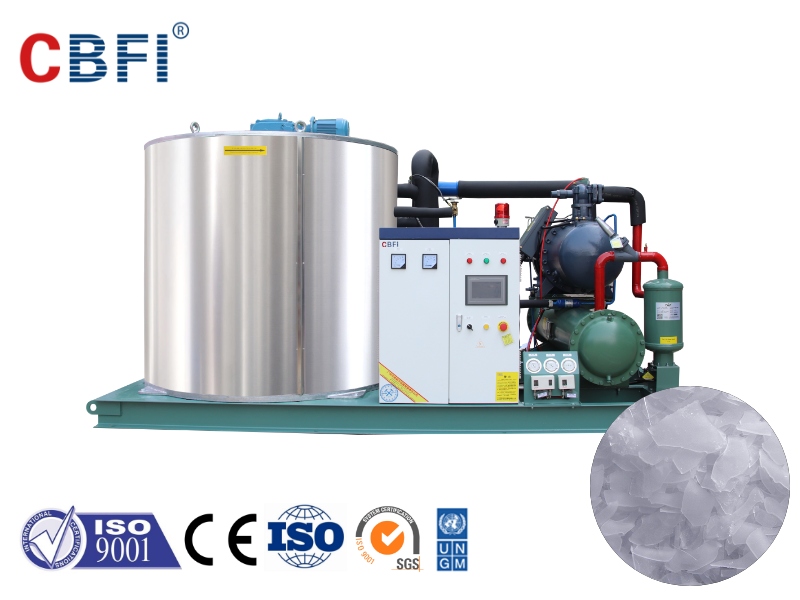

CBFI BF15000 15 ton per 24h flake ice machine


Features of CBFI Flake Ice Machine


BF15000 15 tons flake ice machine  is very suitable for
 fish preservation. Flake ice is very welcomed in aquatic product processing plant with has a large contact surface and can be rapidly cooled . Flake ice is soft and thin, and do no damage to the skin of the fish.
●  Daily Production: 15 ton 24 hrs
1. International brand compressors. Original authentic, refurbished machines and counterfeit machines are rejected. The compressor has high working efficiency and is durable and not easily damaged.

2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.



Parameters


BF15000 Flake Ice Machine Parameters
Name Unit Parameter
Hanbell Compressor Parameter Model RC2-230B
Cooling Capacity(kW) 101.4
Power(kW) 44.5
Condenser Model WN-70
Heat Exchange(kW) 219.5
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -20
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant R507
Voltage V/P/HZ 380/3/50
Evaporator Reducer Power(kw) 0.75
Circulating Pump Power(kw) 0.55
Brine Pump Power(kw) 9
Cooling Tower Model LX-60
Power(kW) 1.5
Cooling Pump Model GD80-21
Power 4
Machine Dimension(Water Cooling) L*W*H(mm) 3100*2000*2176



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
automatic flake ice machine

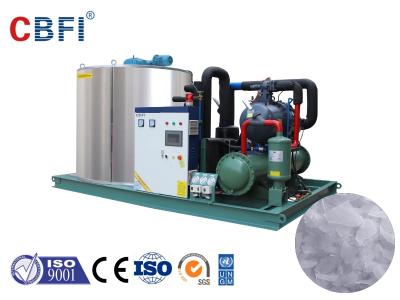

CBFI 5 ton per 24h Flake Ice Machine

BF5000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.

automatic flake ice machine

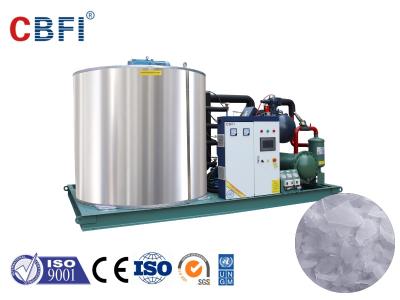

CBFI 10 ton per 24h Flake Ice Machine

BF10000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.

automatic flake ice machine

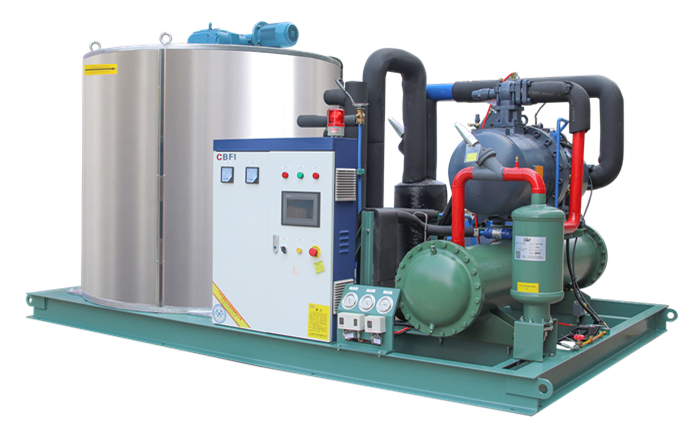

CBFI 20 ton per 24h Flake Ice Machine

BF20000 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields. We have experienced team of R & D engineers, supply special size ince machines made as per request.

 flake ice machine

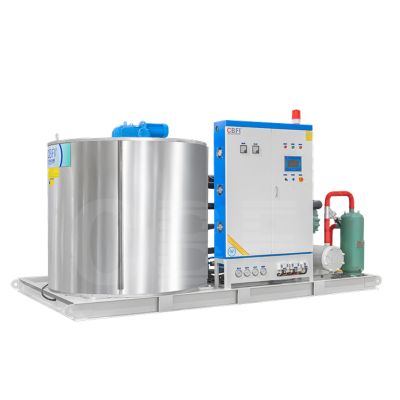

CBFI 30 ton per 24h Flake Ice Machine
