Products
Home /

Automatic Block Ice Machine

/CBFI 30 ton per 24h Automatic Block Ice Machine

CBFI 30 ton per 24h Automatic Block Ice Machine

ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker. CBFI can provide 1-30 tons automatic block ice maker.

  • Brand:

    CBFI, OEM
  • Item NO.:

    ABI300
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

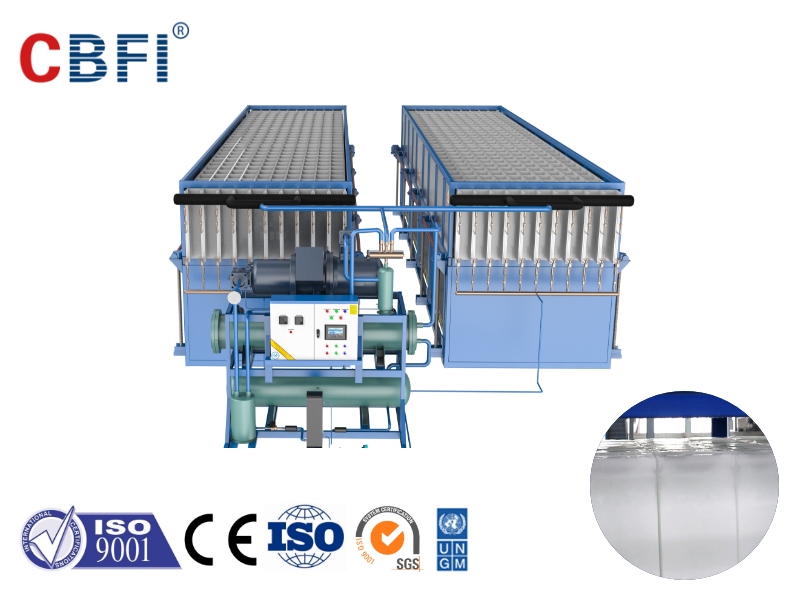

CBFI ABI300 30 ton per 24h block ice machine

large automatic ice block machine


CBFI Automatic Block Ice Machine Advantages


ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker.It uses fully automatic operation to add water, make ice, and collect ice without the need for manual labor.

Daily Capacity: 30 ton 24 hrs

1. Efficient heat exchange, environmental protection and safety

2. Automatic water replenishment, automatic deicing

3. The ice blocks are clean and hygienic, up to edible standards


Machine Detail






Parameters


ABI300 Automatic Block Ice Machine Parameters
Name Unit Parameter
Hanbell Compressor Parameter Model RC2-550B
Cooling Capacity(kW) 311.1
Power(kW) 141.4
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -15
Ambient Temperature Degree Celsius(℃) 28
Water Temperature Degree Celsius(℃) 16
Refrigerant R22
Voltage V/P/HZ 380/3/50
Lifting Motor Power(kW) 11
Cooling Tower Power(kW) 2.2
Cooling Pump Power(kW) 7.5
50kg Block Ice Ice Dimension L*W*H(mm) 435*150*850
Double Evaporator Machine Dimension L*W*H(mm) 11000*2240*2500*2
Evaporator
3200*2000*2500 Compressor Unit
Single Evaporator Machine Dimension L*W*H(mm) 14000*2900*2650
Evaporator
3200*2000*2500 Compressor Unit

Block Ice Making












Quality Control
