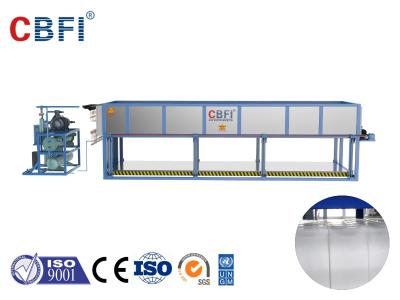

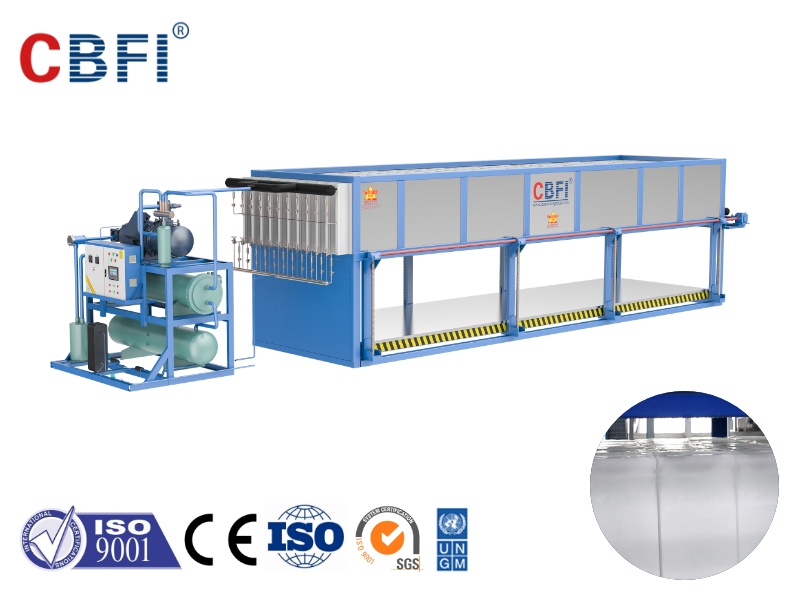

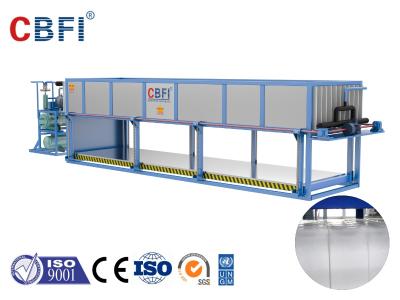

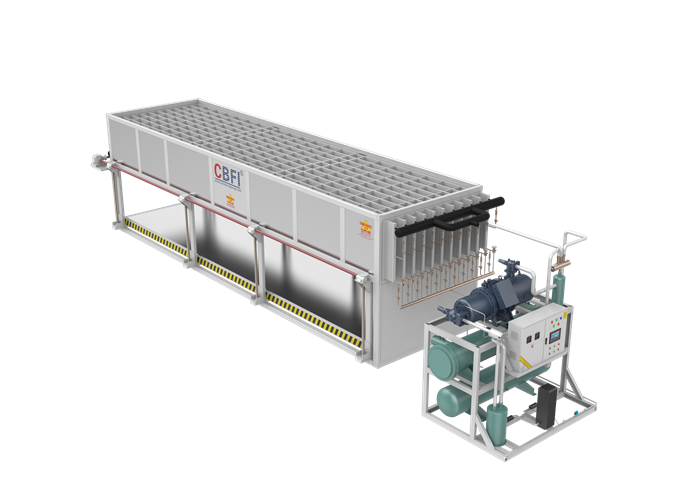

CBFI 20 ton per 24h Automatic Block Ice Machine

ABI200 means automatic ice block machine with 20ton daily capacity.about the machine. CBFI can provide 3-100 tons automatic block ice maker.

  • Brand:

    CBFI
  • Item NO.:

    ABI200
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

CBFI ABI200 20 ton per 24h block ice machine


CBFI Automatic Block Ice Machine Advantages


ABI200 means automatic ice block machine with 20ton daily capacity.about the machine,there is no need to add brine, so the ice mold has a long service life and does not need to be replaced after many years of operation.

Daily Capacity: 20 ton 24 hrs

1. Efficient heat exchange, environmental protection and safety

2. Automatic water replenishment, automatic deicing

3. The ice blocks are clean and hygienic, up to edible standards


Parameters


ABI200 Automatic Block Ice Machine Parameters
Name Unit Parameter
Hanbell Compressor Parameter Model RC2-370B
Cooling Capacity(kW) 196.8
Power(kW) 72.6
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -15
Ambient Temperature Degree Celsius(℃) 28
Water Temperature Degree Celsius(℃) 16
Refrigerant R507
Voltage V/P/HZ 380/3/50
Lifting Motor Power(kW) 7.5
Cooling Tower Power(kW) 2.2
Cooling Pump Power(kW) 5.5
40kg Block Ice Ice Dimension L*W*H(mm) 435*120*850
Machine Dimension L*W*H(mm) 11500*2300*2500
50kg Block Ice Ice Dimension L*W*H(mm) 435*150*850
Split Machine Dimension L*W*H(mm) 7800*2240*2500 Double Evaporator 2800*2000*2300 Compressor Unit
Machine Dimension L*W*H(mm) 13000*2600*2600

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
large automatic ice block machine

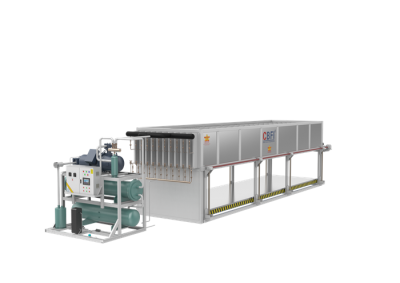

CBFI 15 ton per 24h Automatic Block Ice Machine

ABI150 direct cooling block ice machine is a device for producing large ice cubes. It uses a highly efficient thermally conductive aluminum alloy material for heat exchange with the refrigerant.

large automatic ice block machine
CBFI 30 ton per 24h Automatic Block Ice Machine

ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker. CBFI can provide 3-100 tons automatic block ice maker.

tunnel freezer
1000KG/H Tunnel Freezer

The shape of the tunnel quick freezer is a rectangular tunnel. The conveyor belt can be divided into two types: plate belt type and mesh belt type. Cold air circulates in the tunnel, and food is quickly frozen when passing through the tunnel. The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C. Incoming temperature/outgoing temperature: +15°C/-18°C.

 cube ice machine
CBFI 2 ton per 24h Cube Ice Machine

CBFI CV2000 2 ton per 24h Cube Ice Machine Features of CBFI Edible Cube Ice Machine: 1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards. 2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton. 3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment. 4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%. 5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice. 6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.; 7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models. Machine Details Parameters CV2000 Cube Ice Machine Parameters Name Unit Parameter Bitzer Compressor Parameter Model 4EES-4 Cooling Capacity(kW) 11.7 Power(kW) 4.34 Condenser Model WN-5 Heat Exchange(kW) 19.4 Condensing Temperature Degree Celsius(℃) 40 Evaporating Temperature Degree Celsius(℃) -10 Ambient Temperature Degree Celsius(℃) 32 Water Temperature Degree Celsius(℃) 20 Refrigerant R507 Voltage V/P/HZ 380/3/50 Circulating Pump Power(kW) 0.37 Cooling Tower Model LX-8 Power(kW) 0.18 Cooling Pump Model GD40-15 Power 1.1 Cooling Fan Power(kW) 0.37 Machine Dimension(Water Cooling) L*W*H(mm) 1800*1000*1700 Weight kg 800 Cube Ice  Successful Cube Ice Machine Projects 10 Tons Per Day Cube Ice Machine Project CBFI delivered a complete 10-ton daily cube ice machine solution, featuring high efficiency, stable operation, and excellent ice quality. The system has been running reliably, helping the client meet growing market demand for edible cube ice. View Project Details → 6 Sets of 10-Ton Cube Ice Machines – Energy Saving Solution We successfully supplied and commissioned six 10-ton cube ice machines for a large-scale project, delivering outstanding energy efficiency and reliable performance. This solution significantly reduced operating costs while ensuring continuous high-quality ice production. View Project Details →

AT60 Ammonia Tube Ice Machine
CBFI® AT60 60 Tons Per Day Ammonia Solid Tube Ice Machine

The CBFI ammonia tube ice machine uses ammonia (NH₃) as a refrigerant, featuring Mycom compressor technology for high efficiency and energy savings. Ideal for expanding ice production, it offers flexible design, easy installation, and maintenance, and produces high-quality ice while meeting environmental standards. CBFI provides reliable global support and services.

2 tons tube ice machine

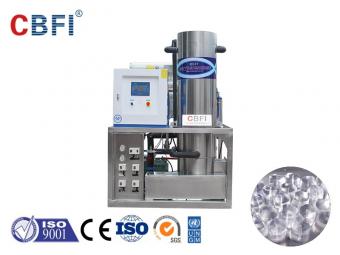

CBFI TV20 2 ton per 24h Tube Ice Machine
