ABI30 means automatic ice block machine with 3ton daily capacity.
CBFI can provide 1-30 tons automatic block ice machine.
Brand:
CBFI, OEMItem NO.:
ABI30Shipping Port:
Guangzhou PortWarranty:
1 yearCBFI ABI30 3 ton per 24h block ice machine
CBFI Automatic Block Ice Machine Advantages
The automatic block ice machine means that fully automatic operation to add water, make ice, and collect ice without the need for manual labor.
Daily Capacity: 3tons
1. Efficient heat exchange, environmental protection and safety
2. Automatic water replenishment, automatic deicing
3. The ice blocks are clean and hygienic, up to edible standards

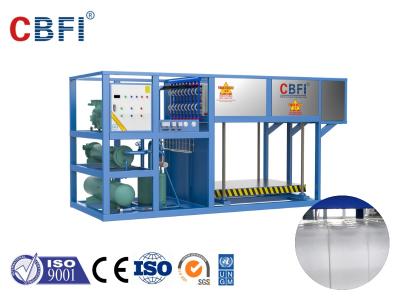

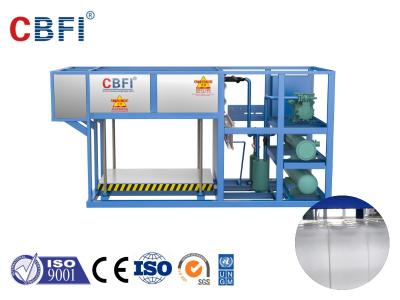

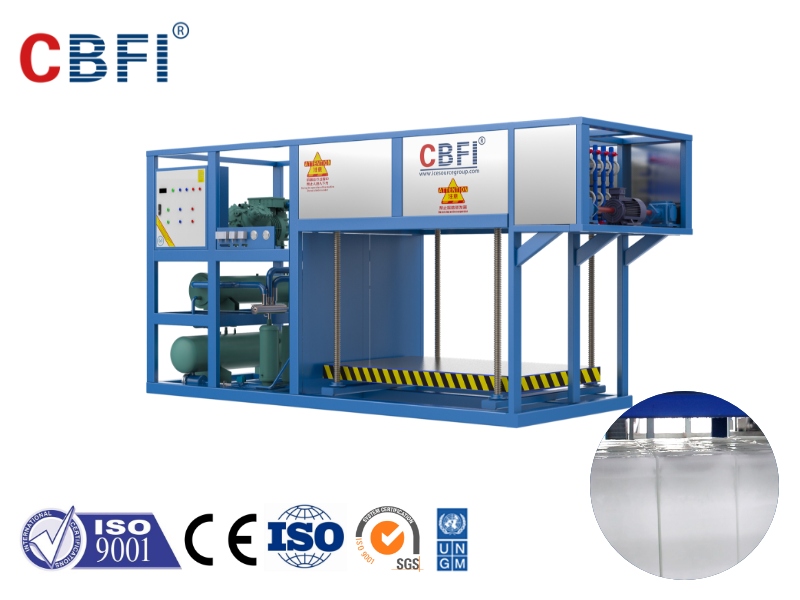

Machine Detail
 |
 |
 |
Parameters
ABI30 Automatic Block Ice Machine Parameters
Name
Unit
Parameter
Bitzer Compressor Parameter
Model
4NES-14
Cooling Capacity（kW）
23.9
Power（kW）
9.44
Condensing Temperature
Degree Celsius（℃）
38
Evaporating Temperature
Degree Celsius（℃）
-15
Ambient Temperature
Degree Celsius（℃）
28
Water Temperature
Degree Celsius（℃）
16
Refrigerant
R507
Voltage
V/P/HZ
380/3/50
Lifting Motor
Power（kW）
1.1
Cooling Tower
Power（kW）
0.55
Cooling Pump
Power（kW）
1.1
10kg Block Ice Dimension
L*W*H(mm)
225*90*550
15kg Block Ice Dimension
L*W*H(mm)
245*120*560
Machine Dimension(Water Cooling)
L*W*H(mm)
4600*1380*1900
Block Ice Making
 |
 |
 |
|
|
|
|
 |
 |
 |
Quality Control
 |
 |
 |
|
|
|
|
 |
 |
 |
ABI10 means automatic ice block machine with 1ton daily capacity.
ABI50 means automatic ice block machine with 5ton daily capacity. CBFI can provide 1-30 tons automatic block ice maker.
About ABI100 10 tons automatic ice block machine, It uses fully automatic operation to add water, make ice, and collect ice without the need for manual labor.
ABI150 direct cooling block ice machine is a device for producing large ice cubes. It uses a highly efficient thermally conductive aluminum alloy material for heat exchange with the refrigerant.
ABI200 means automatic ice block machine with 20ton daily capacity.about the machine. CBFI can provide 1-30 tons automatic block ice maker.
ABI300 30 Ton automatic ice block machine is the large daily capacity direct cooling ice block maker. CBFI can provide 1-30 tons automatic block ice maker.
60 ton per 24h tube ice machine is using ammonia as the refrigerant. At present, we can provide 10 to 80 tons with ammonia refrigerant 24 hours for customers.
