Item NO.:
BBI300Shipping Port:
Guangzhou PortWarranty:

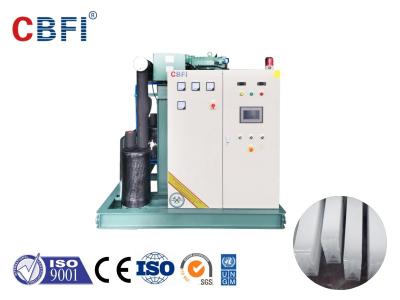

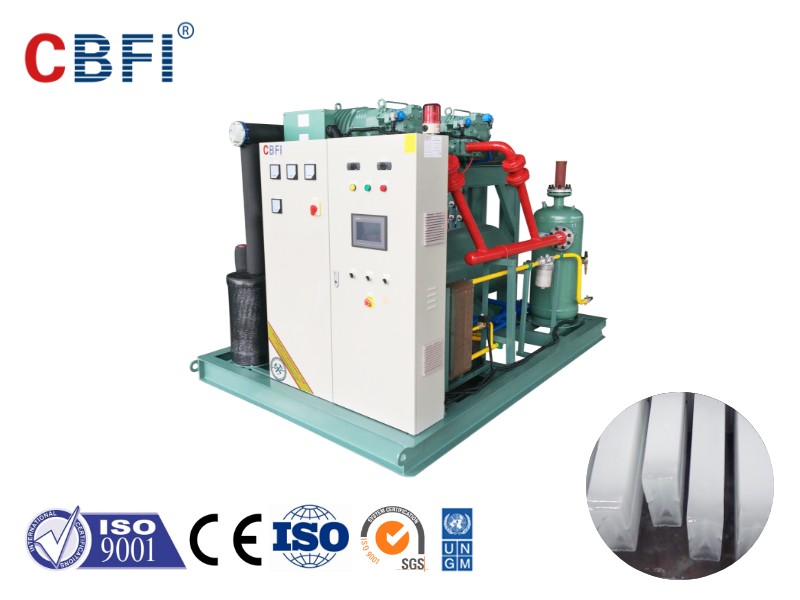

1 yearCBFI BBI300 30 ton per 24h block ice machine
Features of CBFI Block Ice Machine:
1. Power saving and energy saving. Patented evaporator design improves ice making efficiency and reduces energy consumption.
2. The salt water pool is extremely resistant to corrosion. The surface of the salt water pool adopts anti-corrosion technology, two primers and one top coat, the paint surface is resistant to low temperature, long-term salt water immersion does not fall off, and the service life is more than 35% higher than similar products.
3. Customized ice molds of any size. The ice mold can be customized according to the needs of the local market.
4. Durable evaporator. Ultra-thick coil tube wall, up to 3mm thick, and the service life up to 20 years.
5. Large capacity reservoir. It can ensure that the ice machine is operated in a large temperature difference environment without liquid shock. It is the best product for compressor protection among similar products.
Machine Details
 |
 |
Parameters
BBI300 Block Ice Machine Parameters
Name
Unit
Parameter
Bitzer Compressor Parameter
Model
4TES-9
Cooling Capacity（kW）
15.92
Power（kW）
6.62
Condenser
Model
WN-10
Heat Exchange（kW）
35.8
Condensing Temperature
Degree Celsius（℃）
38
Evaporating Temperature
Degree Celsius（℃）
-18
Ambient Temperature
Degree Celsius（℃）
32
Water Temperature
Degree Celsius（℃）
20
Refrigerant
R507
Voltage
V/P/HZ
380/3/50
Agitator
Power（kW）
2.2
Cooling Tower
Model
LX-15
Power(kW)
0.25
Cooling Pump
Model
GD50-17
Power
1.5
SS304 Ice Mold Dimension
L*W*H(mm)
Customized
Machine Dimension
L*W*H(mm)
Customized
Remarks
Crane is not included.

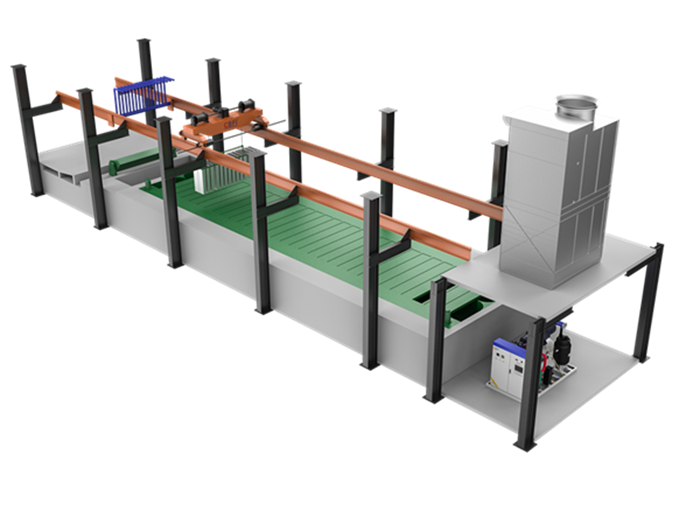

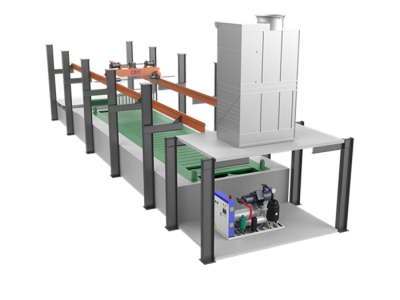

Block Ice Making
 |
 |
 |
|
|
|
|
 |
 |
 |
Quality Control
 |
 |
|
|
|
 |
 |
CBFI Customized Size Medical Cold Storage Room Medical Cold Storage Room The temperature of Medicine Cold Room is commonly +2℃ ~ +8℃. The cold room mainly stores various medical products and devices whose quality cannot be guaranteed at normal temperatures. The cold room keeps medicine not going bad at low temperatures and prolong the shelf life and meet technical requirements of Drug Administration. Medicine Cold Room has the advantage sof fresh-keeping, fast cooling, complete function, energy saving. The refrigeration control system adopts intelligent microcomputer electric control technology on needed human intervention. It can monitor and record temperature as well as humidity of the storage area. With fully automatic constant temperature, automatic startup and shutdown without manual operation and digital temperature display, the storage security of the medicines is ensured. Packing & Delivery
