CBFI 60 ton per 24h Tube Ice Maker Machine

60 ton per 24h tube ice machine is using ammonia as the refrigerant.  At present, we can provide 10 to 80 tons with ammonia refrigerant 24 hours for customers.

  • Item NO.:

    TV600
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

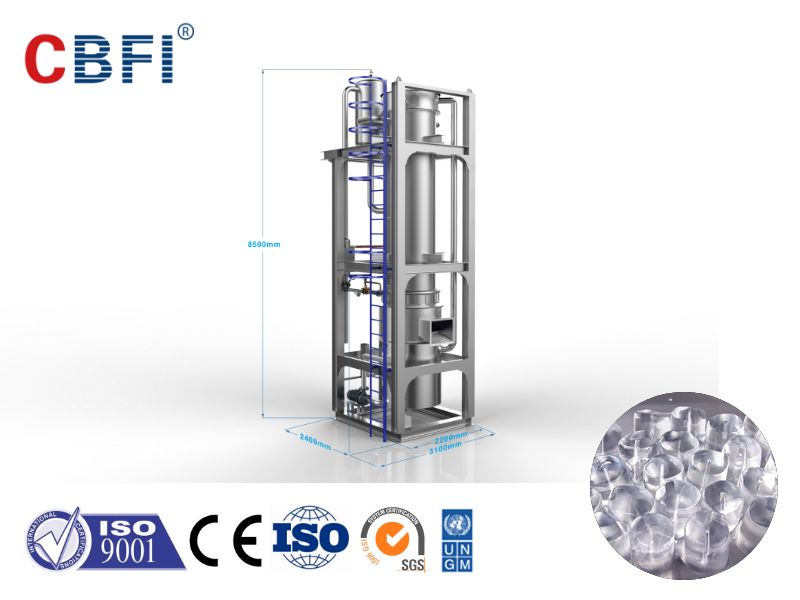

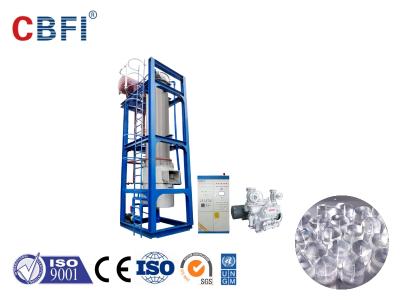

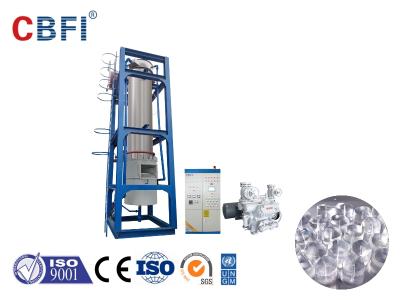

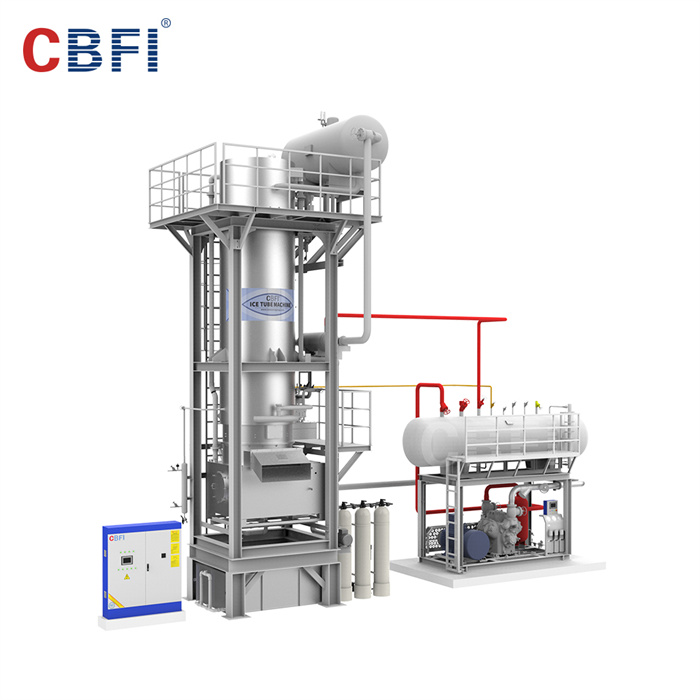

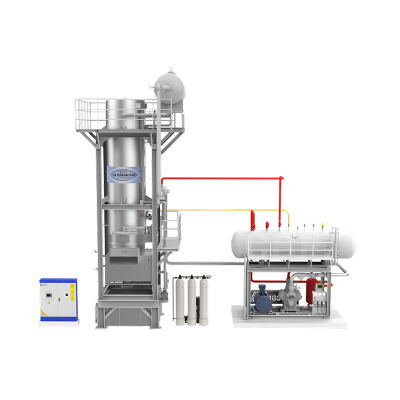

CBFI TV600 60 ton per 24h tube ice machine


Features of CBFI Tube Ice Machine


60 ton per 24h tube ice machine is using ammonia as the refrigerant. The tube ice machine is of high capacity.
At present, we provide 10 to 80 tons with ammonia refrigerant 24 hours for customers.


●  Daily Production: 60 ton 24 hrs

1. 3D design, convenient for container transportation, simple installation and maintenance.
2. The evaporator adopts stainless steel polyurethane foam insulation, and the pipeline adopts insulation treatment, which is more energy-saving and has a beautiful appearance.
3. The parts in contact with ice are made of food-grade high-quality 304 stainless steel to ensure ice safety and sanitation.
4. PLC intelligent control system, fully automated production, without manual operation.
5. Using automatic laser welding machine to weld, the welding spot is beautiful, no leakage is guaranteed, and the equipment failure rate is low.
6. The whole machine has passed CE certification, which has high security.
7. The special water system design ensures better ice quality, uniform thickness, transparency and purity.
8. Unique ice removal method, fast ice removal speed, less system impact, higher efficiency and safer.
9. It can be equipped with stainless steel spiral conveying ice storage hopper, manual or automatic packing system.


Machine Details










Parameters


TV600 Tube Ice Machine Parameters
Name Unit Parameter
Tube Diameter mm Φ22 Φ28 Φ35
Bitzer Compressor Parameter Model 6FE-50*3
Cooling Capacity(kW) 243.3
Power(kW) 87.6
Condenser Heat Exchange(kW) 400
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -10
Ambient Temperature Degree Celsius(℃) 25
Water Temperature Degree Celsius(℃) 21
Refrigerant R507
Voltage V/P/HZ 380/3/50
Motor Power Ice Cutting Motor(kW) 1.5
Recircling Pump(kW) 4
Cooling Tower Power(kW) 2.2
Cooling Pump Power 5.5
Water Cooling Machine Dimension L*W*H(mm) 3260*2200*2100 Compressor Unit
1800*1550*5566 Evaporator


Quality Control













Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
