Automatic Block Ice Machine

/CBFI 1 ton per 24h Automatic Block Ice Machine

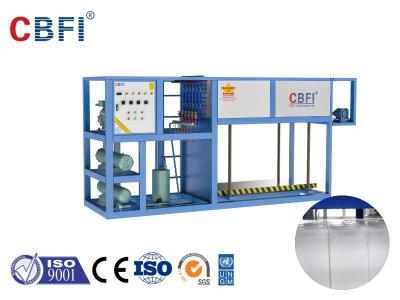

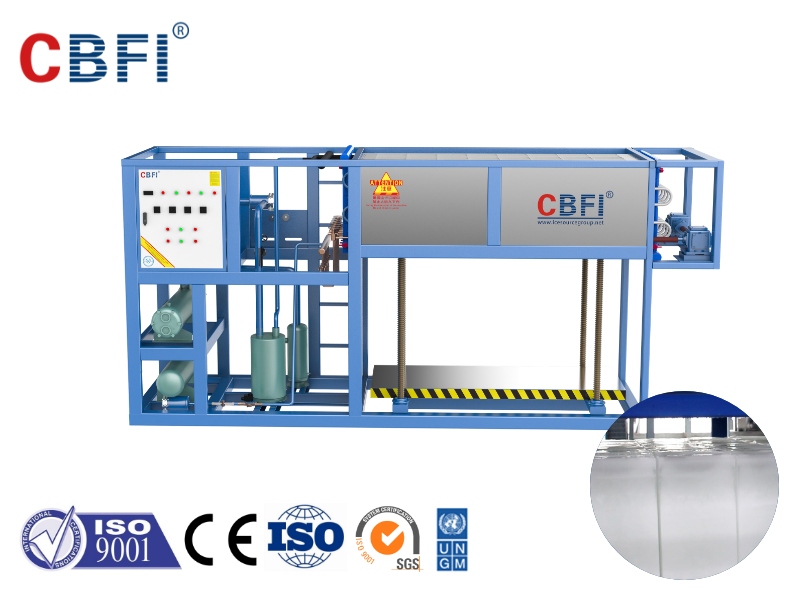

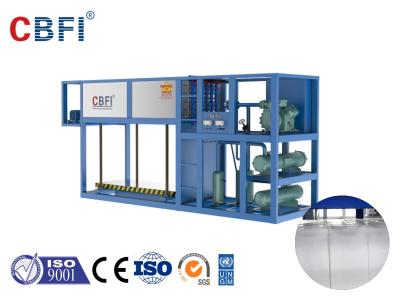

CBFI 1 ton per 24h Automatic Block Ice Machine

ABI10 means automatic ice block machine with 1ton daily capacity.

  • Item NO.:

    ABI10
  • Shipping Port:

    Guangzhou Port
  • Warranty:

    1 year
  • Product Details
  • video

CBFI ABI10 1 ton per 24h block ice machine

small automatic block ice machine


CBFI Automatic Block Ice Machine Advantages


Daily Capacity: 1 tons 24 hrs

. Efficient heat exchange, environmental protection and safety

2. Automatic water replenishment, automatic deicing

3. The ice blocks are clean and hygienic, up to edible standards


Machine Detail






Parameters


ABI10 Automatic Block Ice Machine Parameters
Name Unit Parameter
Bitzer Compressor Parameter Model 4EES-4
Cooling Capacity(kW) 9.35
Power(kW) 3.88
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -15
Ambient Temperature Degree Celsius(℃) 28
Water Temperature Degree Celsius(℃) 16
Refrigerant R22
Voltage V/P/HZ 380/3/50
Lifting Motor Power(kW) 1.1
Cooling Tower Power(kW) /
Cooling Pump Power(kW) /
5kg Block Ice Dimension L*W*H(mm) 110*90*550
10kg Block Ice Dimension L*W*H(mm) 225*90*550
Machine Dimension(Air Cooling) L*W*H(mm) 3000*1100*1700

Block Ice Making












Quality Control
