Refrigeration Engineering of Two Cold Chain Project

★Project 1

Project Name:Refrigeration Engineering of Pupu Cold Chain Project

Cold storage room type: cold chain distribution warehouse

Cold storage room capacity (tons): The size of the distribution warehouse is 16800㎡*8.5m, with a total of 1

Basic parameters of the unit:Bitzer compressor unit, 4 units

Evaporative condenser, Qianchuan, MKS-2860, 2 units
Air cooler, Kelvion/Demurphy, 13 units

Special point:Fluorine pump

★Project 2

Project Name: Demao Cold Storage (Phase II) Refrigeration Project

Cold storage type: distribution warehouse

Cold storage capacity (tons): Distribution warehouse area: 11000㎡*9.7m

Basic parameters of the unit:Compressor, Bitzer, 3 units
Evaporative condenser, MKS-2010, 2 units
Air cooler, Kelvion/Yimei, 40 units

Design points:Fluorine pump

This project uses a centralized energy-saving industrial refrigeration system with the following characteristics.
1. Energy saving, this system has made many optimizations in energy saving.
2. Safety. The refrigeration system has multiple guarantees in terms of safe operation.
3. High degree of automation
4. The function of the automatic monitoring system

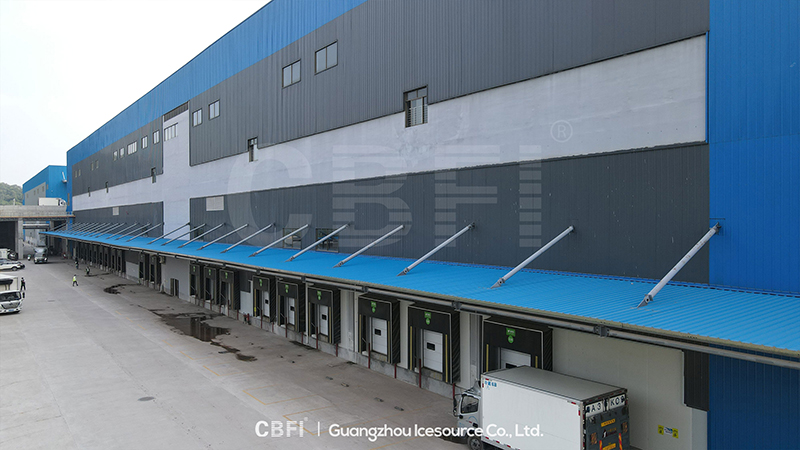

1、Cold storage shipping platform

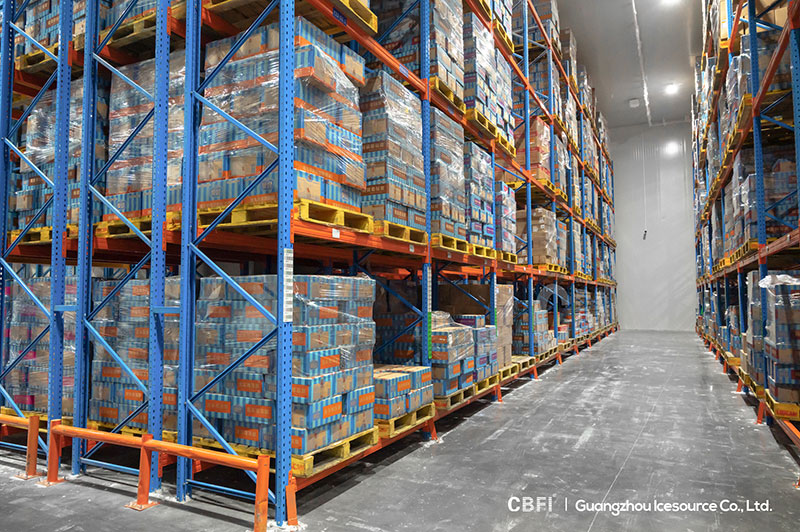

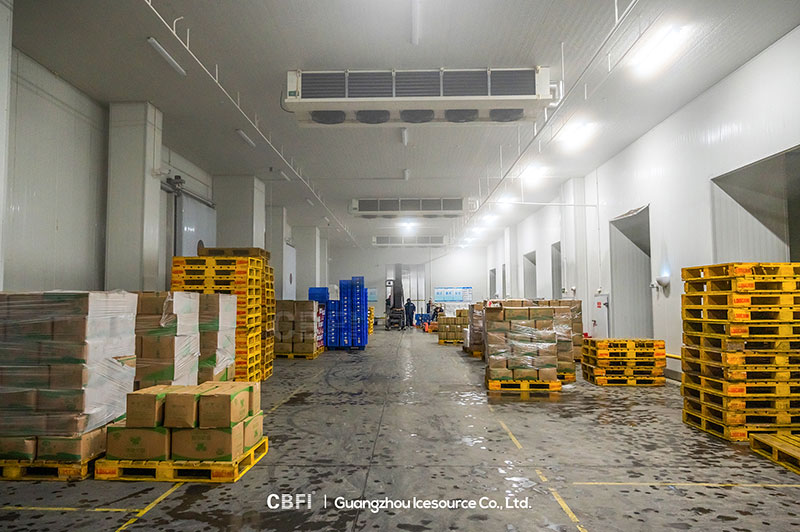

2、-18°C low temperature refrigerator

3、Cold room compressor

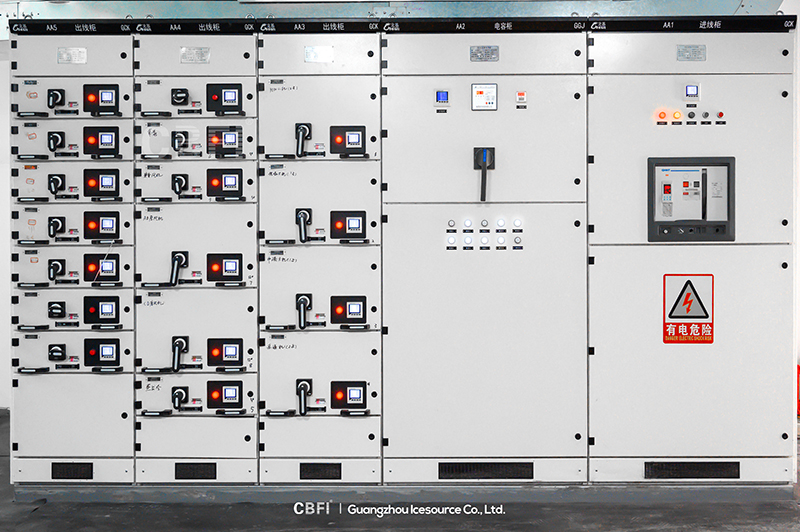

5、No.1 Control room
